HVG RIGGING-LIFTING 0175

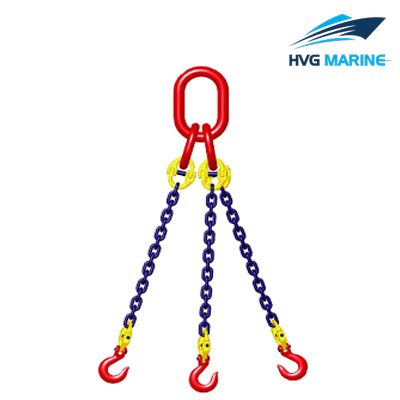

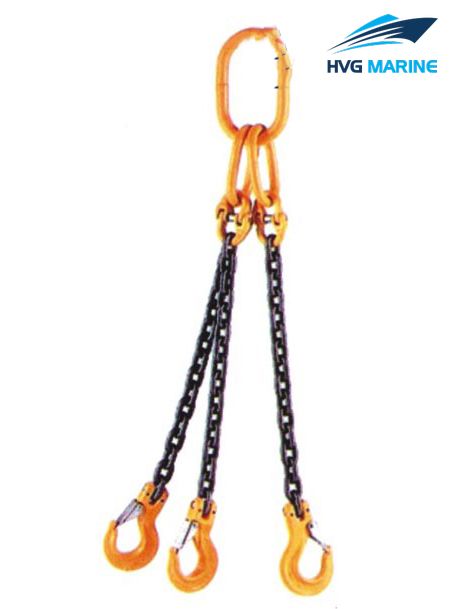

HVG RIGGING-LIFTING 0175: Three Legs Chain Sling

Three legs chain sling is adapted to use in large-scale and frequent occasions. The flexible multilimb structure and assembling forms can improve the work efficiency and cut the cost. It is made of premium alloy steel sted with good ware-resisting quality. Objects must hang on the center of the hook, the edge of the hook shall not be hang in. And the heavy objests should not be hang in the hook for a long time.

Product Details:

1. Item: Three legs chain sling
2. Grade: G80
3. Structure: Welded chain
4. Material: Alloy steel
5. Technology: Drop forged
6. Surface: Hot dip galvanized, Color painted
7. Function: Drag chain
8. Size: 6mm-30mm
9. Must be used in the range of its rated load.
10. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

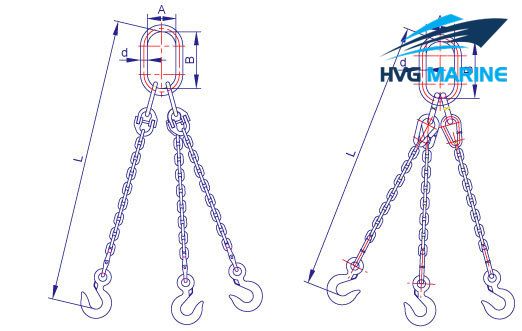

Dia.of chain	WLL(T)		Weight	Chain weight	A	B	d
mm	a≤45°	45°﹤a≤60°	kg/m	kg	mm	mm	mm
6	2.1	1.5	5.79	0.79	80	150	20
8	3.1	2.5	9.66	1.38	90	160	24
10	5.2	3.7	18.47	2.2	100	190	28
12	7.3	5.2	26.34	3.1	100	190	28
14	10.5	7.5	32.04	4.13	120	230	34
16	12.6	9	41.66	5.63	135	250	38
18	16.8	12	51.56	6.85	140	270	42
20	21	15	64.41	8.6	160	310	46
22	25.2	18	119.3	10.2	180	330	52
24	29.4	21	122.6	12.78	180	330	52
26	35.7	25	196.99	14.87	180	330	56
30	46.2	33	210.79	19.6	210	410	62
