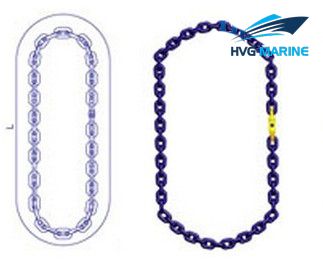

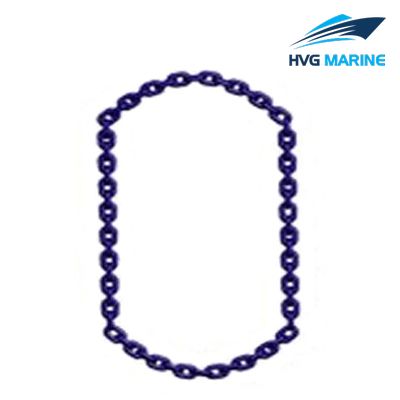

    HVG RIGGING-LIFTING 0171: Endless Chain Sling

    Endless chain sling is adapted to use in large-scale and frequent occasions. The parameter of chain in the tableis in accordance with JB/TB108.1-1990 Grade (8). The ratio between working load and breaking load is 1:4. And we can design and produce other type of chain sling according to customers requirement.

    Product Details:

    • 1. Item: Endless chain sling
    • 2. Grade: G80
    • 3. Structure: Welded chain
    • 4. Material: Alloy steel
    • 5. Technology: Drop forged
    • 6. Surface: Hot dip galvanized, polished, color painted
    • 7. Function: Drag chain
    • 8. Size: 6mm-34mm
    • 9. Must be used in the range of its rated load.
    • 10. Special specifications and marks can be made according to customers requirement

    Technical specification:

    • Specification:

    Dia.of chain(mm)

    WLL(T)

    Weight(kg/m)

    6

    2

    1.63

    8

    3

    2.85

    10

    5

    4.61

    12

    7

    6.54

    14

    10

    8.86

    16

    12

    12.09

    18

    16

    14.78

    20

    20

    18.64

    22

    24

    22.32

    24

    28

    28.11

    26

    34

    32.85

    30

    44

    42.88

    34

    72

    50.17
