HVG RIGGING-LIFTING 0173

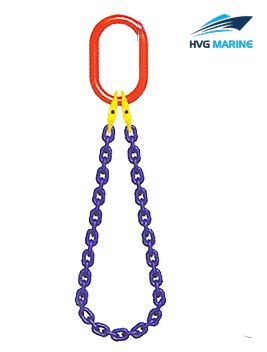

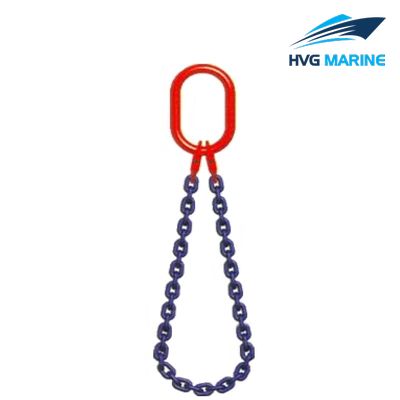

HVG RIGGING-LIFTING 0173: One Leg Chocker Chain Sling

One leg chocker chain sling is made of premium alloy steel sted with good ware-resisting quality. It can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products.

Product Details:

1. Item: One leg chocker chain sling
2. Grade: G80
3. Structure: Combined chain
4. Material: Alloy steel
5. Technology: Drop forged
6. Surface: Hot dip galvanized, polished, color painted
7. Function: Drag chain
8. Size: 6mm-34mm
9. Must be used in the range of its rated load.
10. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

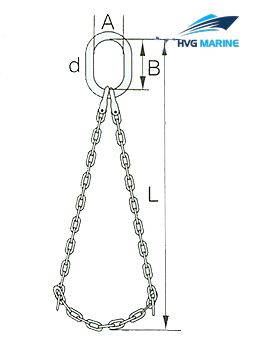

Dia.of chain	WLL(T)		Weight	Chain weight	A	B	d
mm	α≤45°	45°﹤α≤60°	kg/m	kg	mm	mm	mm
6	1.12	0.8	1.5	0.79	65	130	16
8	1.68	1.2	2.25	1.38	65	130	16
10	2.8	2	3.98	2.2	80	150	20
12	3.92	2.8	5.98	3.1	90	160	24
14	5.6	4	8.75	4.13	100	190	28
16	6.72	4.8	11.13	5.63	100	190	28
18	8.96	6.4	14.37	6.85	110	200	32
20	11.2	8	18.34	8.6	120	230	34
22	13.44	9.6	23.46	10.2	135	250	38
24	15.68	11.2	28.28	12.78	135	250	38
26	19.04	13.6	35.39	14.87	140	270	42
30	24.64	17.6	45.08	19.6	160	310	46
34	40.66	29.2	67.88	22.7	210	410	62
