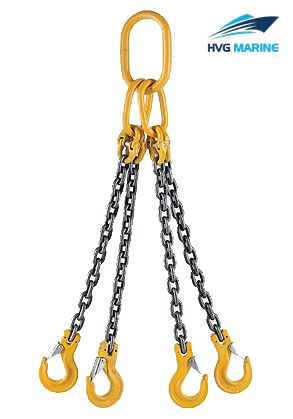

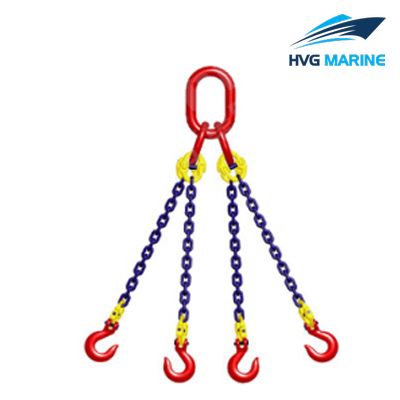

HVG RIGGING-LIFTING 0174: Four Legs Chain Sling

Four legs chain sling can be used as one leg chocker chain sling when the hook is inside the link. But the working load will be reduced 20%. The ratio between working load and breaking load is 1:4. And we can design and produce other type of chain sling according to customers requirement.

Product Details:

1. Item: Four legs chain sling
2. Grade: G80
3. Structure: Hollow chain
4. Material: Alloy steel
5. Technology: Drop forged
6. Surface: Hot dip galvanized, polished, color painted
7. Function: Drag chain
8. Size: 6mm-30mm
9. Must be used in the range of its rated load.
10. Special specifications and marks can be made according to customers requirement

Technical specification:

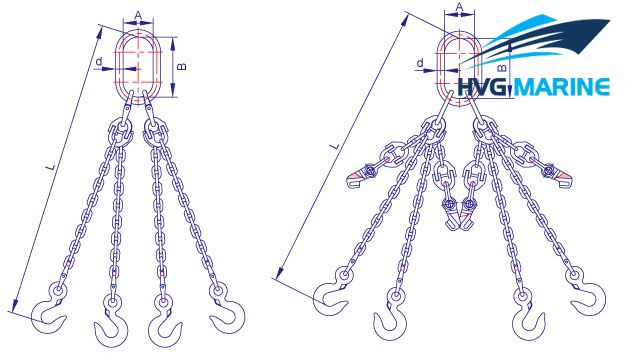

Specification:

Dia.of chain	WLL(T)		Weight	Chain weight	A	B	d
mm	a≤45°	45°﹤a≤60°	kg/m	kg	mm	mm	mm
6	2.1	1.5	7.33	0.79	80	150	20
8	3.1	2.5	12.21	1.38	90	160	24
10	5.2	3.7	23.42	2.2	100	190	28
12	7.3	5.2	33.77	3.1	100	190	28
14	10.5	7.5	40.54	4.13	120	230	34
16	12.6	9	53.51	5.63	135	250	38
18	16.8	12	64.47	6.85	140	270	42
20	21	15	79.88	8.6	160	310	46
22	25.2	18	150.42	10.2	180	330	52
24	29.4	21	155.75	12.78	180	330	52
26	35.7	25	253.27	14.87	180	330	56
30	46.2	33	268.64	19.6	210	410	62
