HVG RIGGING-LIFTING 0075: DIN3039 Aluminium Wire Rope Ferrule

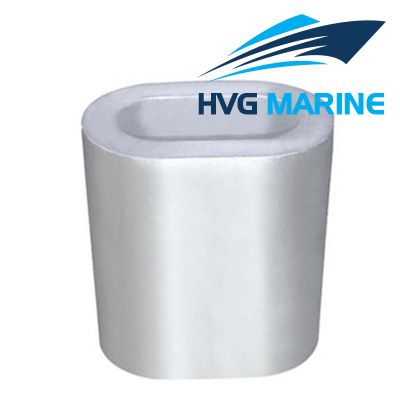

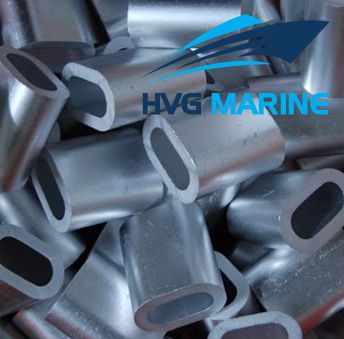

DIN3039 aluminium wire rope ferrule are manufactured according to EN13411-3 from 2.5mm to 60mm. For safety in fabrication and application, our ferrules are made of strictly seamless material corresponding to the requirements of DIN3039. It can improve the quality of pressed wire rope products. And it is widely used in wire rope field according to it cheap price and high cost performance.

Product Details:

1. Model: Din3039 aluminium wire rope ferrule
2. Material: Aluminiuml
3. Technology: Casting
4. Shape: Oval

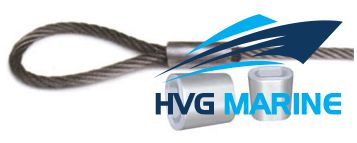

5. Usage: Wire rope fitting
6. Specificaion: 1-60
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

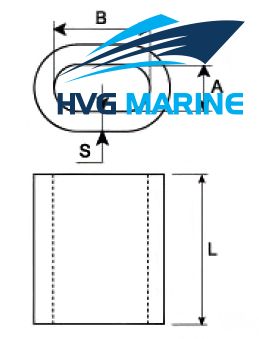

Ferrule Code	Weight	A	B	S	L
Ferrule Code	kg/1000pcs	mm	mm	mm	mm
1	0.094	1.2	2.4	0.65	5
1.5	0.211	1.7	3.4	0.75	6
2	0.375	2.2	4.4	0.85	7
2.5	0.499	2.7	5.4	1.05	9
3	0.843	3.3	6.6	1.25	11
3.5	1.32	3.8	7.6	1.5	13
4	1.81	4.4	8.8	1.7	14
4.5	2.61	4.9	9.8	1.9	16
5	3.57	5.5	11	2.1	18
6	5.86	6.6	13.2	2.5	21
6.5	7.55	7.2	14.4	2.7	23
7	9.5	7.8	15.6	2.9	25
8	13.7	8.8	17.6	3.3	28
9	19.8	9.9	19.8	3.7	32
10	26.4	10.9	21.8	4.1	35
11	35.8	12.1	24.2	4.5	39
12	45.8	13.2	26.4	4.9	42
13	59.7	14.2	28.4	5.4	46
14	73.5	15.333	30.6	5.8	49
16	111	17.5	35	6.7	56
18	156	19.6	39.2	7.6	63
20	217	21.7	43.4	8.4	70
22	292	24.3	48.6	9.2	77
24	376	26.4	52.8	10	84
26	481	28.5	57	10.9	91
28	603	31	62	11.7	98
30	739	33.1	66.2	12.5	105
32	897	35.2	70.4	13.4	112
34	1077	37.6	75.6	14.2	119
36	1275	39.8	79.6	15	126
38	1503	41.9	83.8	15.8	133
40	1734	44	88	16.6	140
42	2024	46.2	92.4	17.5	147
44	2314	48.4	96.8	18.3	154
46	2662	50.6	101.2	19.2	161
48	3010	52.8	105.6	20	168
50	3412	55	110	20.8	175
52	3813	57.2	114.4	21.6	182
54	4293	59.4	118.8	22.5	189
56	4772	61.6	123.2	23.3	196
58	5326	63.8	127.6	24.2	203
60	5880	66	132	25	210
