HVG RIGGING-LIFTING 0073

HVG RIGGING-LIFTING 0073: Wire Rope Aluminium Stop Button

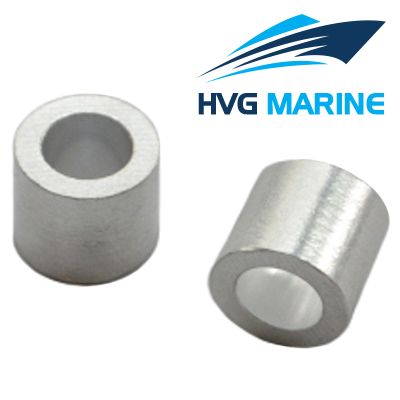

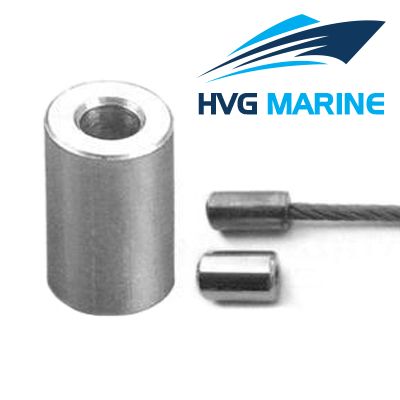

Aluminium stop button is made of seamless aluminium sleeve by the unique techniques of us with special processing for the inside of aluminium alloy sleeve. And it can greatly improve the quality of pressed wire rope products.

Product Details:

1. Model: Wire rope aluminium stop button
2. Material: Aluminium alloy
3. Technology: Casting
4. Shape: Round shape
5. Usage: Wire rope fitting
6. Size: M1-M10
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

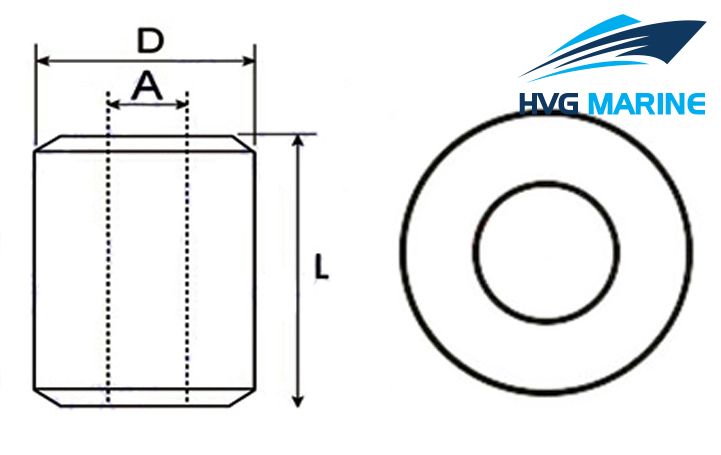

Code	Thinkness	Weight	A	D	L
Code	mm	kgs/1000pcs	mm	mm	mm
M1	0.9	0.04	1.2	3	3.2
M1.2	0.95	0.08	1.4	3.3	5
M1.5	0.75	0.1	1.8	4	8
M2	1.1	0.16	2.3	5	5
M2.5	1.4	0.29	2.7	5.5	5.5
M3	1.3	0.3	3.4	6	6
M4	1.5	0.62	4.5	7.5	8
M5	1.5	0.78	5.5	8.5	9
M6	2	1.47	6.8	10.8	10
M8	2	2.02	8.8	12.8	11
