HVG RIGGING-LIFTING 0074

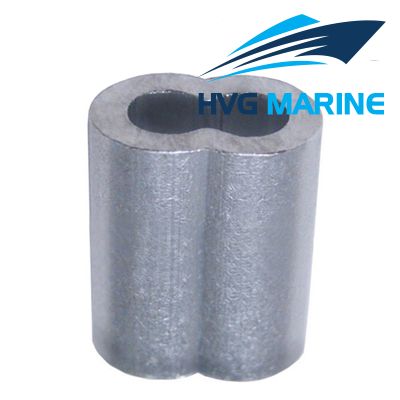

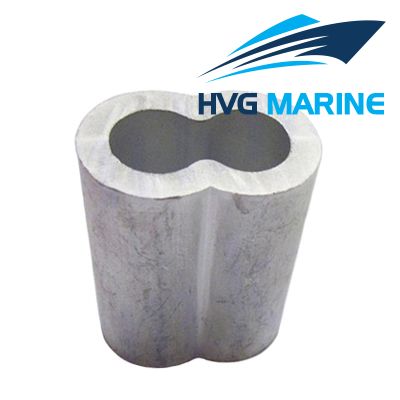

HVG RIGGING-LIFTING 0074: US Type Hourglass Aluminium Ferrule

US type hourglass aluminium wire rope ferrule are produced from 1.19mm-15.88mm. Using such aluminium sleeve manufactured through unique processing can improve the quality of pressed wire rope products, even higher than the national standard.

Product Details:

1. Model:US type hourglass aluminium wire rope ferrule
2. Material: Aluminiuml
3. Technology: Casting
4. Shape: 8 shape

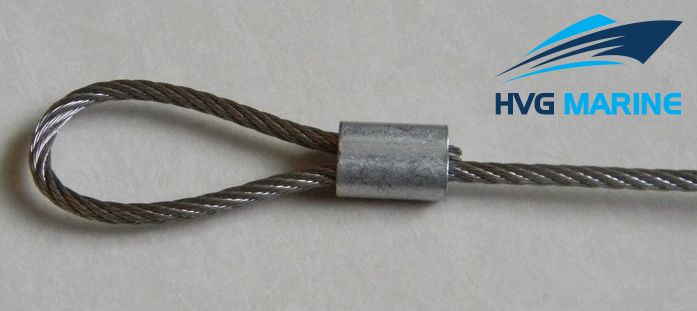

5. Usage: Wire rope fitting
6. Specificaion: 1.19mm-15.88mm
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

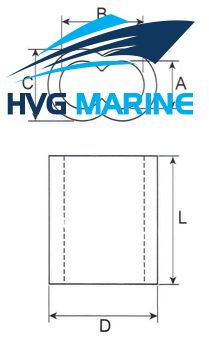

Size	Weight	A	B	C	D	L
mm	kgs/1000pcs	mm	mm	mm	mm	mm
1.19	0.276	1.59	3.18	3.6	5.2	9.5
1.58	0.433	1.98	3.97	4.4	6.4	9.5
1.98	0.645	2.38	4.76	5.2	7.9	9.5
2.38	1.45	3.18	6.35	7.1	10.3	12.7
3.18	2.7	3.97	7.94	8.7	12.7	16
3.97	3.67	4.76	9.53	9.53	14.3	17
4.76	7.18	5.56	11.11	11	16.7	25
5.56	10	6.35	12.7	12.7	19	26
6.35	11.76	7.14	14.29	13.5	20.6	28
7.14	13.62	7.94	15.88	14.3	22.2	30
7.94	20.94	9.53	19.05	17.5	26.2	32
9.53	28.18	11.11	22.23	19.1	29.4	36
11.11	52	12.7	25.4	23.8	36.5	42
12.7	80.15	14.29	28.58	27	41.3	50
14.29	99.88	15.88	31.75	28.6	44.5	54
15.88	139.78	17.46	34.93	31.8	49.2	64
