HVG RIGGING-LIFTING 0072: Coppe Wire Rope Ferrule

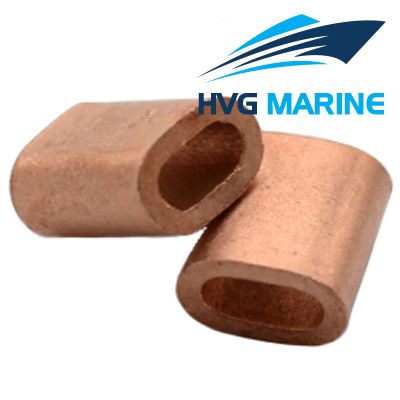

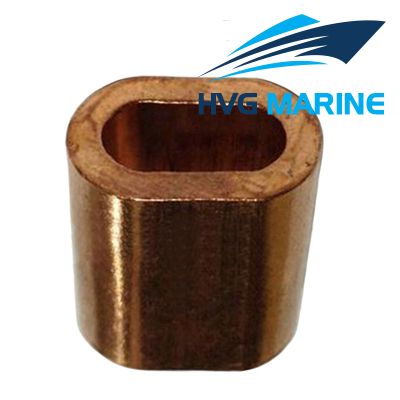

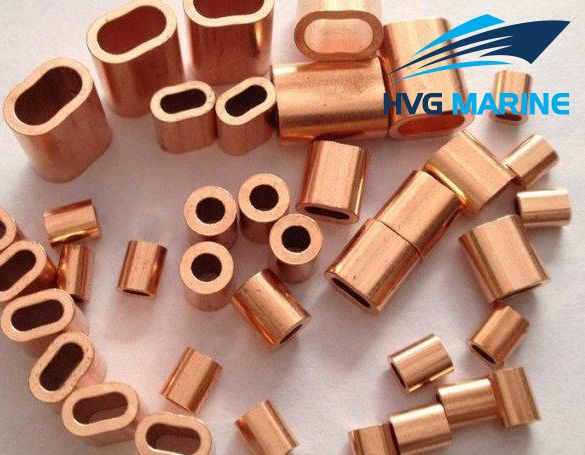

Copper wire rope ferrule is acid- resistance, alkali-resistance, salt-asistance and high-humidity-resistance. It is applicable to strongly corrosion conditions such as deep sea. Using such copper sleeve manufactured through unique processing can improve the quality of pressed wire rope products.

Product Details:

1. Model: Copper wire rope ferrule
2. Material: Copper
3. Technology: Welded
4. Shape: Oval shape

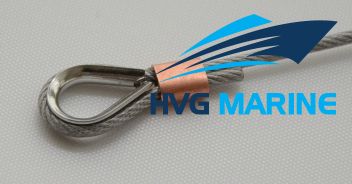

5. Usage: Wire rope fitting
6. Size: 1mm-18mm
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

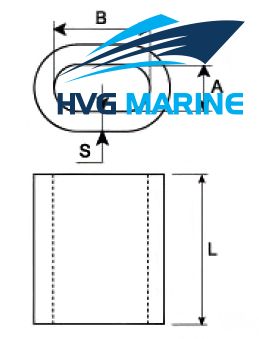

Code	Weight	A	B	S	L
Code	kgs/1000pcs	mm	mm	mm	mm
1	0.32	1.3	2.6	0.85	5
1.5	0.72	1.8	3.6	1.05	6
2	0.82	2.4	4.8	0.85	7
2.5	1.7	2.7	5.4	1.1	9
3	2.9	3.3	6.6	1.35	11
3.5	4.5	3.9	7.8	1.6	13
4	6.2	4.3	8.8	1.7	14
4.5	8.9	5.1	10.2	1.9	16
5	12.2	5.6	11.2	2.1	18
6	20	6.7	13.4	2.5	21
6.5	27	6.9	14	2.7	23
7	32	7.5	15	3	25
8	47	8.5	17	3.5	28
9	68	9.9	19.8	3.7	32
10	90	10.9	21.8	4.1	35
11	122	11.6	23.2	4.2	39
12	158	13.2	26.4	4.9	42
13	198	14.2	28.4	5.4	46
14	243	15.3	30.6	5.8	49
16	366	17.5	35	6.7	56
18	529	19	38	7.8	63
