HVG RIGGING-LIFTING 0059

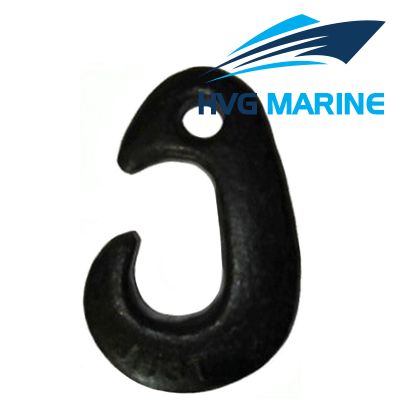

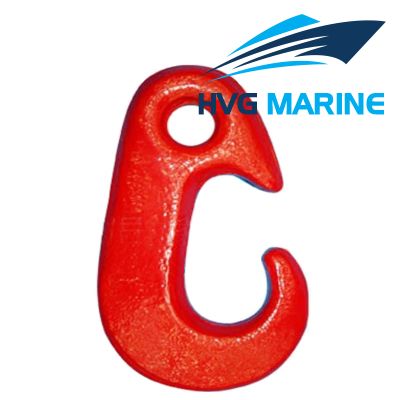

HVG RIGGING-LIFTING 0059: Nose Shaped Hoisting Hook

Nose shaped hoisting hook is drop forged from high quality low carbon alloy steel. It has advantages of high strength and high temperature resistance. We can provide it with sufficient supply, fast delivery time and complete specification.

Product Details:

1. Model: Nose shaped hoisting hook
2. Material: Alloy steel
3. Technology: Drop forged
4. Surface: Hot dip galvanized
5. Usage: Lifting Cargo
6. SWL: 1T-10T
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

Code	SWL	A	B	C	D	E	H
Code	ton	mm	mm	mm	mm	mm	mm
HS-4301	1	17	20	25	32	16	80
HS-4302	2	24	24	32	42	18	90
HS-4303	3	31	28	40	56	22	102
HS-4304	5	38	38	62	70	33	140
HS-4305	8	46	46	70	80	38	168
HS-4306	10	50	50	80	90	42	188
