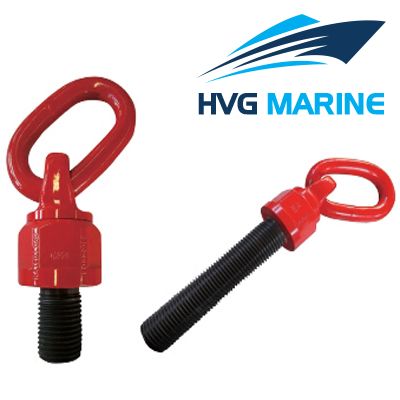

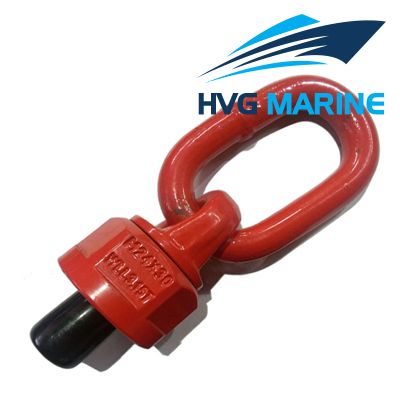

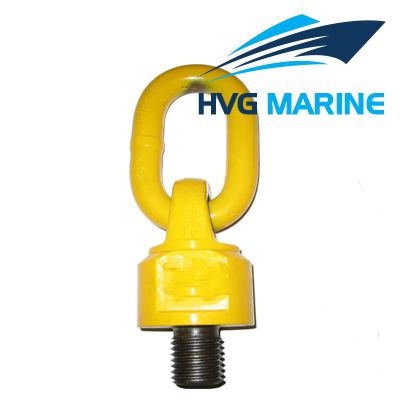

HVG RIGGING-LIFTING 0057: Swivel Hoist Ring

Swivel hoist ring can be used in special lifting applications to swivel in horizontal of 360 degrees and in vertical of 180 degrees. Compared with the traditional one, it is more flexible and can meet lifting requirements in all aspects. And we can provide it with sufficient supply, fast delivery time and complete specification.

Product Details:

1. Model: Swivel hoist ring
2. Material: Alloy steel
3. Technology: Drop forged
4. Surface: Hot dip galvanized
5. SWL: 0.4T-49T
6. Weight: 0.41kg-25.9kg
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

Item	WLL	Weight	A	B	C	D	d	E	F
Item	T	kg	mm	mm	mm	mm	mm	mm	mm
HS-M8	0.4	0.41	30	42	96	44	13	37	13
HS-M10	0.5	0.43	30	42	96	44	13	37	19
HS-M12	1.05	0.7	30	42	96	44	13	37	19
HS-M14	1.15	0.75	30	42	96	44	13	37	31.8
HS-M16	1.9	0.9	30	42	96	44	13	37	31.8
HS-M20	2.15	2.21	40	67	160	75.5	19.1	64.3	38.1
HS-M22	2.25	2.21	40	67	160	75.5	19.1	64.3	38.1
HS-M24	4.2	2.21	40	67	160	75.5	19.1	64.3	38.1
HS-M30	5	3.86	50.8	95	205	90	22.2	74	50
HS-M33	7	3.86	50.8	95	205	90	22.2	74	50
HS-M36	8	3.86	50.8	95	205	90	22.2	74	54
HS-M39	8	3.86	50.8	95	205	90	22.2	74	58
HS-M42	10	6.08	63	108	230	100	25	85	63
HS-M45	10	6.08	63	108	230	100	25	85	68
HS-M48	10	6.08	63	108	230	100	25	85	68
HS-M52	15	10.8	70	120	278	132	32	95	84
HS-M56	15	10.8	70	120	278	132	32	95	84
HS-M60	15	10.8	70	120	278	132	32	95	90
HS-M64	15	10.8	70	120	278	132	32	95	95
HS-M72	25	22.8	80	125	331	166	40	130	108
HS-M80	30	23.9	80	125	331	166	40	130	120
HS-M90	35	25.9	80	125	331	166	40	130	135
HS-M100	49	25.9	80	125	331	166	40	130	135
