HVG RIGGING-LIFTING 0058

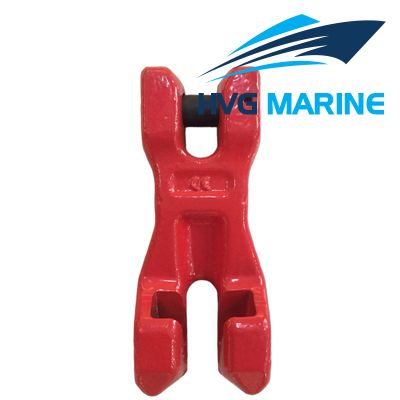

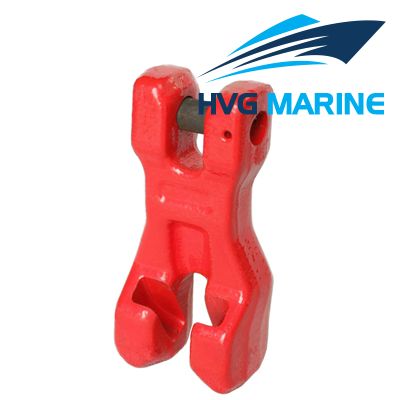

HVG RIGGING-LIFTING 0058: G80 Clevis Chain Clutch

G80 clevis chain clutch is used to adjust the length of chain to make the operation more flexible. Our clevis chain clutch is casted the from high quality alloy steel, and through heat treatment, it become more solid and safety. The new design of it make the chain would not loose easily.

Product Details:

1. Model: G80 clevis chain clutch
2. Material: Alloy steel
3. Technology: Casting
4. Surface: Hot dip galvanized
5. Usage: Chain fitting
6. SWL: 1T-15T
7. BL: 4T-60T
8. Weight: 0.17kg-8.5kg
9. Packaging: Gunny bag or carton then on steel pallet
10. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

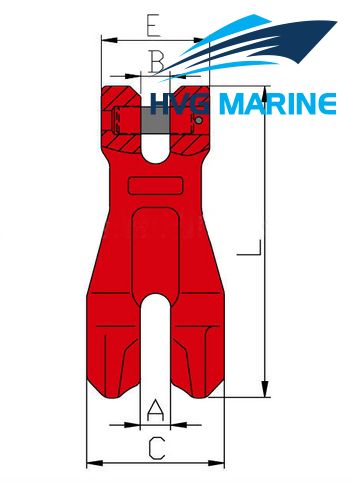

Code	WLL	B.L	A	B	C	E	L
Code	T	T	mm	mm	mm	mm	mm
HS-06	1.12	4.48	7.5	7.5	33	26	73.5
HS-7/8	2	8	9.5	9.5	45	36	101
HS-10	3.15	12.6	13	13	55	48	138
HS-13	5.3	21.2	18	18	75	59	177
HS-16	8	32	21	21	93	73	220
HS-20	12.5	50	22	22	99	78	238
HS-22	15	60	25.5	25.5	118	98	295
