HVG RIGGING-LIFTING 0056

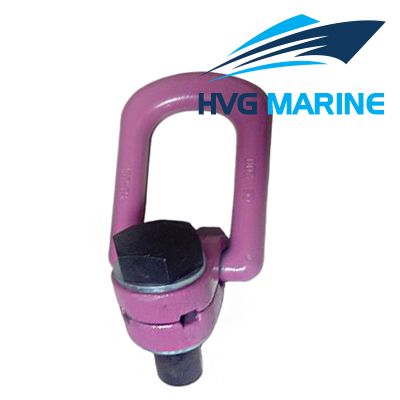

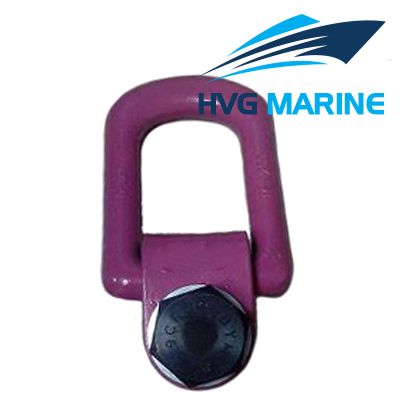

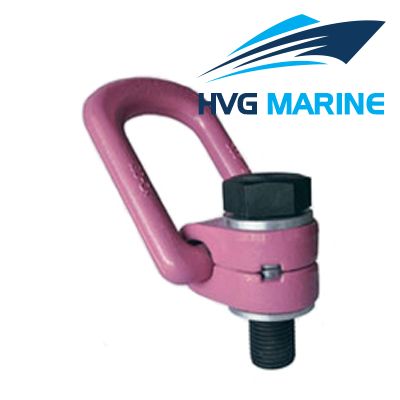

HVG RIGGING-LIFTING 0056: Alloy Steel Forged Swivel Hoist Ring

Alloy steel forged swivel hoist chain can swivel 360 degrees on the vertical axis, after being tightened, the lifting ring can also move up 180 degree on horizontal. Compared with the traditional one, it is more flexible and can meet lifting requirements in all aspects. It can be widely used in lifting, transportation, port loading and unloading, ship building, mining, metallurgy, construction and so on.

Product Details:

1. Model: Alloy steel forged swivel hoist ring
2. Material: Alloy steel
3. Technology: Drop forged
4. Surface: Power coating
5. SWL: 0.3T-20T
6. Weight: 0.3kg-14.2kg
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

Screw Length	SWL	Weight	A	B	C	D	G	F	H	EL	SW
mm	T	kg	mm	mm	mm	mm	mm	mm	mm	mm	mm
45	0.3	0.3	30	34	38	13	56	98.5	33	12	13
50	0.6	0.38	30	34	40	13	56	98.5	33	17	17
65	1	0.86	45	49	48	19	76	122.5	40	25	19
65	1.2	0.89	45	49	49	19	76	122.5	40	25	22
65	1.5	0.9	45	49	50	19	76	122.5	40	25	24
80	2	1.75	61	65	62	24	98	160	51	29	27
90	2.5	1.85	61	65	64	24	98	160	51	39	30
90	4	1.95	61	65	66	24	98	160	51	39	36
120	5	4.4	66	70	89	30	118	197.5	70	50	45
125	7	4.65	66	70	90	30	118	197.5	70	55	55
145	8	7.5	80	86	102	38	142	248	82	63	55
155	10	7.95	80	86	105	38	142	248	82	73	64
155	15	13.5	100	105	118	50	177	297	95	60	64
165	20	14.2	100	105	121	50	177	297	95	70	74
