HVG RIGGING-LIFTING 0045: GCL-B Manual Geared Trolley

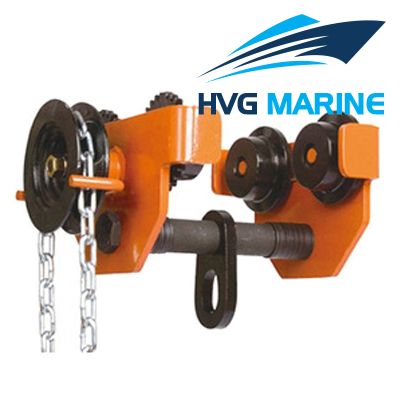

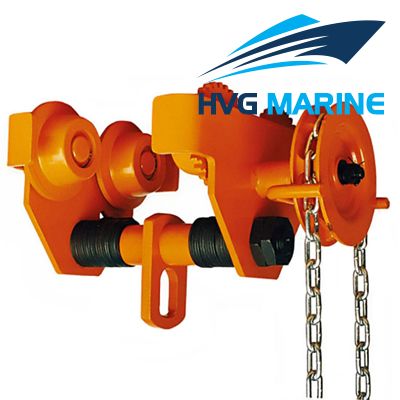

GCL-B manual geared trolley is made from high strength low alloy structural steel. It is one of the most light and beautiful trolley currently, and the breaking load is 4 times of working load limited. The wheel spacing of it can be adjust according to the I-beam. All the products have gone through overload detection, and we can provide the testing certificates and operation manual.

Product Details:

1. Model: GCL-B geared trolley
2. Power source: Hand pulling
3. Usage: Hoist
4. Weight: 10.5-420kg
5. Capacity: 0.5-40ton
6. I-beam: 50-320mm
7. Certificates: ISO, CE, SGS,etc.
8. Packaging: Gunny bag or carton then on steel pallet
9. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

Item	Capacity	Weight	I-beam	A	B	C	D	G	H
Item	ton	kg	mm	mm	mm	mm	mm	mm	mm
GCL-B0.5	0.5	10.5	50-203	322	194	176	28	32	75
GCL-B1	1	16	64-305	436	236	196	32	40	96
GCL-B1.5	1.5	20	74-305	439	250	210	36	45	96
GCL-B2	2	24	88-305	445	266	226	42	52	109
GCL-B3	3	38	100-305	459	322	266	52	63	124
GCL-B5	5	53	114-305	475	362	301	62	74	142
GCL-B8	8	93	124-305	502	426	388	72	110	185
GCL-B10	10	94	124-305	508	442	386	95	110	192
GCL-B16	16	170	136-305	602	555	498	95	135	236
GCL-B20	20	174	136-305	604	555	498	95	135	236
GCL-B30	30	337	136-305	674	710	608	105	155	285
GCL-B40	40	420	190-320	758	800	748	165	250	285
