HVG RIGGING-LIFTING 0044

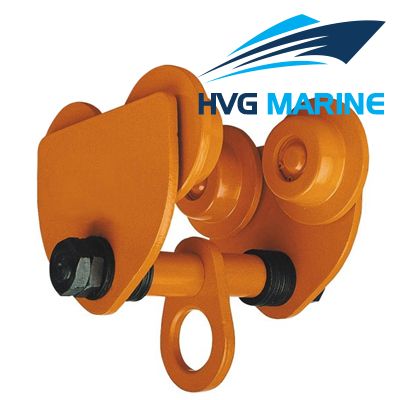

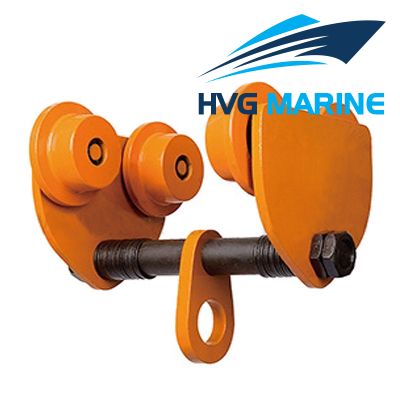

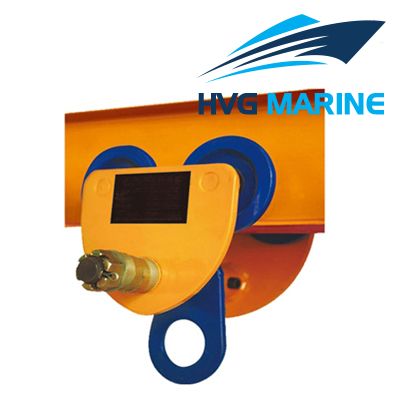

HVG RIGGING-LIFTING 0044: Plain Trolley

The main parts of plain trolley is made from high quality alloy steel. It is driven by pulling the heavy object, and can move on the edge of I-beam track freely. It is widely used in factories, mines, docks, warehouses, machinery processing, constraction site to install machinery, equipment and lifting goods. It complies with the European CE safety standard.

Product Details:

1. Model: Plain trolley
2. Power source: Hand pulling
3. Usage: Hoist
4. Weight: 5.5-430kg
5. Capacity: 0.5-10ton
6. Certificates: ISO, CE, SGS,etc.
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

Item	Capacity	Weight	I-beam	A	B	C	D	E	F
Item	ton	kg	mm	mm	mm	mm	mm	mm	mm
HS-5	0.5	5.5	75-125	206	174	120	45	55	27
HS-10	1	7.5	75-125	206	231	120	45	80	27
HS-20	2	11.2	100-150	241	271	155	60	100	33
HS-30	3	17	100-150	261	311	185	70	113	47
HS-50	5	30.5	125-175	294	351	220	80	125	53
HS-100	10	43	150-175	294	721	265	90	125	53
