HVG RIGGING-LIFTING 0038

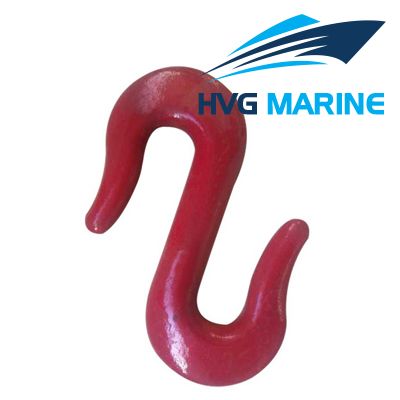

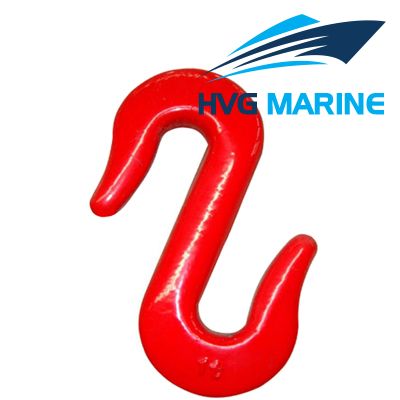

HVG RIGGING-LIFTING 0038: Drop Forged S Shape Hook

It is drop forged from high quality carbon steel or alloy steel with heat treatment and galvanizing on the surface. It has advantages of small volume, light weight and high strength. The testing load is 2 times of working load limited, and the breaking load of it is 4 times of working load limited.

Product Details:

1. Model: Drop forged S shape hook
2. Material: Carbon steel or alloy steel
3. Usage: Lifting hoist equipment
4. Weight: 1kg-12kg
5. Capacity: 1-10ton
6. Forbidden to use overload
7. Certificates: ISO, CE, SGS,etc.
8. Packaging: Gunny bag or carton then on steel pallet
9. Special specification and marks can be made according to order quantity

Technical specification:

Specification:

Rated Capacity	Weight	T	A	B	D	J	R	R1	R2	H	H1
ton	kg	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
1	1	25	25	166	75	24	7	11	6	97	33
2	1.5	28	28	175	80	26	8	12	7	106	33.5
3	2	30	30	183	80	30	9	13	8	117	36.5
5	4.5	44	44	243	100	38	12	16.5	10	158	49.5
8	8	60	60	311	125	55	17	20	12	196	63
10	12	75	75	361	150	70	18	21	12.5	240	68
