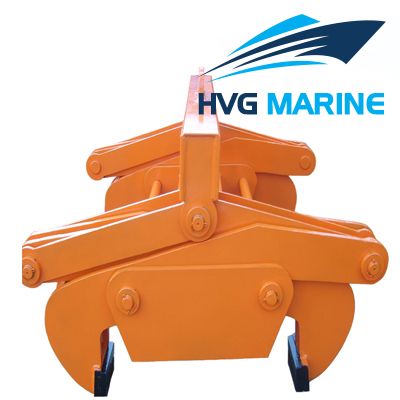

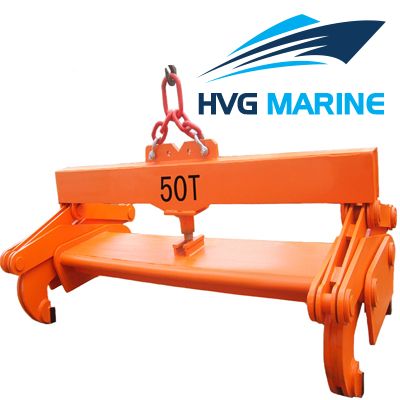

HVG RIGGING-LIFTING 0039: Steel Slab Lifting Tong

Steel slab lifting tong adopts the lever principle and can clamp the billet stably and safely without auxiliary of external force. The opening and closing device is manufactured form high strength alloy steel, which make it has high wear resistance and long service life. This kind of tong can be devided into fixed type and adjustable type to adapt to the lifting of different billet.

Product Details：

1. Model: Steel slab lifting tong
2. Material: Low carbon alloy steel
3. Usage:Lifting hoist equipment
4. Weight: 350kg-4800kg
5. Capacity: 3-20ton
6. Forbidden to use overload
7. Certificates: ISO, CE, SGS,etc.
8. Packaging: Carton then on steel pallet
9. Special specification and marks can be made according to order quantity

Specification：

Technical specification:

Specification：

Capacity	Range of Billet Width	Min.Thickness of Billet	Max.dimension		Weight
ton	mm	mm	W	H	kg
3	100-300	60	1200	1600	350
5	100-300	70	1200	1800	500
5	170-50	80	1300	1800	600
5	450-600	100	1200	1800	600
5	650-1000	140	1500	2300	850
8	150-450	90	2000	2400	1300
8	450-600	110	1600	2500	1300
8	450-750	130	1600	2200	1350
10	450-900	140	1900	2600	2200
10	650-1000	150	1600	2600	1800
10	700-1100	160	1700	2600	1900
12	450-750	120	1800	2400	2600
12	235-800	150	2300	3000	2700
16	450-750	120	2000	2700	3600
16	450-900	140	2100	3000	3800
16	650-1000	150	2000	2700	3800
16	600-1100	190	2400	3100	4200
16	850-1250	160	2000	3000	4200
20	700-1100	150	2200	3200	4600
20	800-1300	170	2200	3400	4800
20	950-1400	160	2500	3500	4800
