    HVG RIGGING-LIFTING 0043

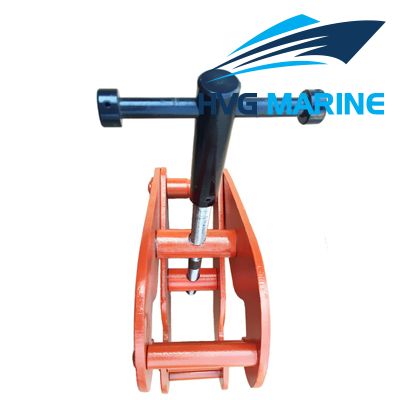

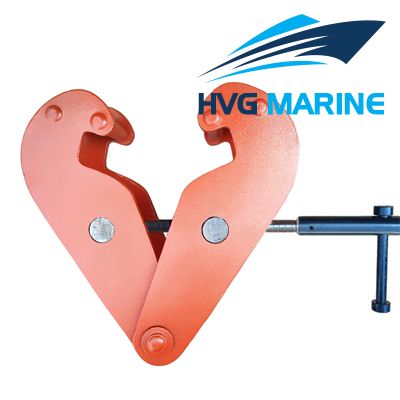

    HVG RIGGING-LIFTING 0043: Lifting Beam Clamp

    Lifting beam clamp is a kind of simple and safe load attached tool. Rotate and open the screw to the width of the beam, then clamp it on the edge of beam tightly. It can also be used as traction splint to lift and transport steel beam. Because it is suitable for all kinds of beam, it can be used widely to finish installation and assembly.

    Product Details：

    • 1. Model: Lifting beam clamp
    • 2. Material: Low carbon alloy steel
    • 3. Usage: Support the lifting hoist equipment
    • 4. Weight: 3.8-16kg
    • 5. Capacity: 1-10ton
    • 6. Opening width: 75-320mm
    • 7. Forbidden to use overload
    • 8. Certificates: ISO, CE, SGS,etc.
    • 9. Packaging: Carton then on steel pallet
    • 10. Special specification and marks can be made according to order quantity

    Technical specification:

    • Specification：

    Item

    Capacity

    Opening Width

    Weight

    ton

    mm

    kg

    HS-01

    1

    75-220

    3.8

    HS-02

    2

    75-220

    4.6

    HS-03

    3

    80-320

    9

    HS-05

    5

    80-320

    11

    HS-10

    10

    90-320

    16
