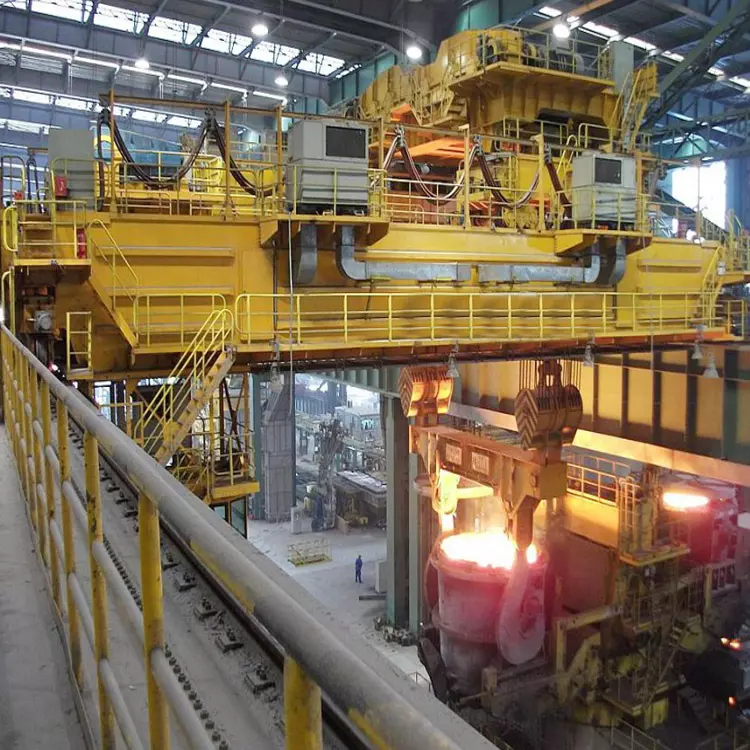

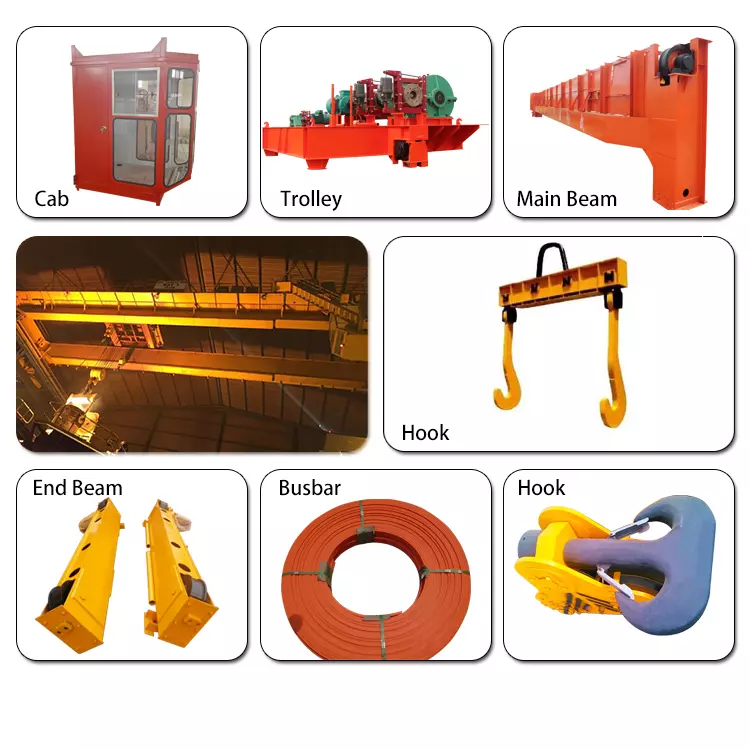

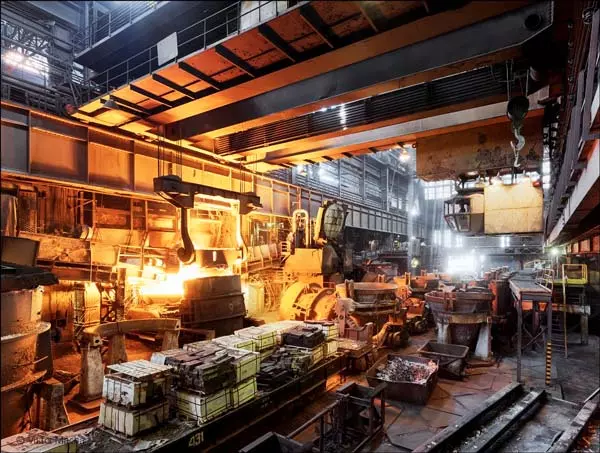

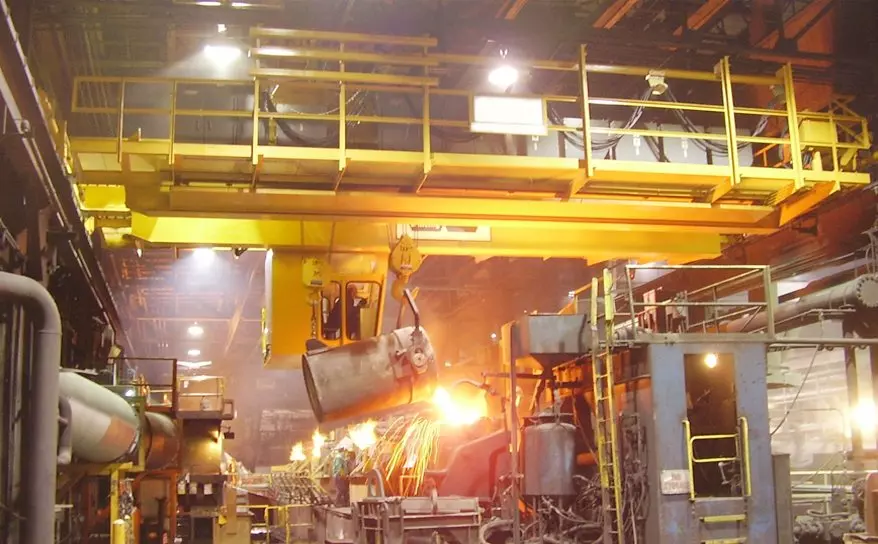

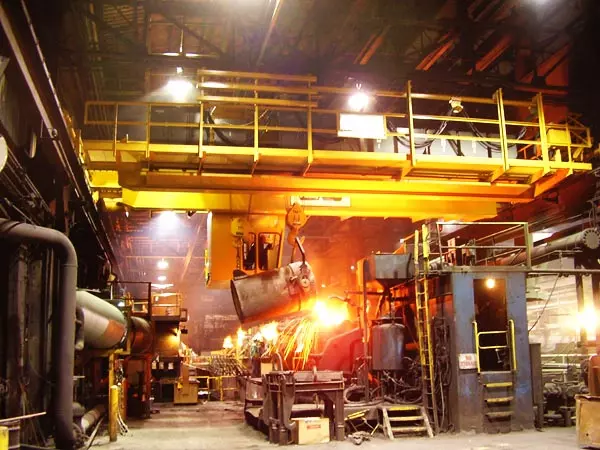

Metallurgy Overhead Crane model overhead bridge crane with hook mainly consists of main beam, hook trolley, crane traveling mechanism, cabin and electric controlling system

• Lifting speed: 5-15M/MIN
• Trolley running speed: 20-40M/MIN
• Crane running speed: 50-100M/MIN
• Working duty: A5-A7
• Control method: cabin control/wire rope remote control
• Protection grade: IP54
• Insulation grade: H
• Colour: request
• Power supply: 3 phase 380V 50hz or request

Features and Advantages:

1. Reasonable and compact structure , f avorable performance , s oft starting and stopping , s afe and reliable traveling .
2. Low noise, commodious operation cabin and good view . Convenient maintenance and excellent interchangeability for parts and components .
3. It can greatly reduce energy consumption with advanced design and high quality components.

Characteristic of QDY/YZ electric double beam/ girder bridge/ overhead crane

• QDY Lifting Capacity: 5-74T
• YZ Lifting Capacity: 100/32~320/80
• Span: 10.5m-31.5m (Non-standard design can be made)
• Working Class: A7
• Working Temperature: -25°C to ~40°C
• Voltage: 380V 50Hz 3-phase
