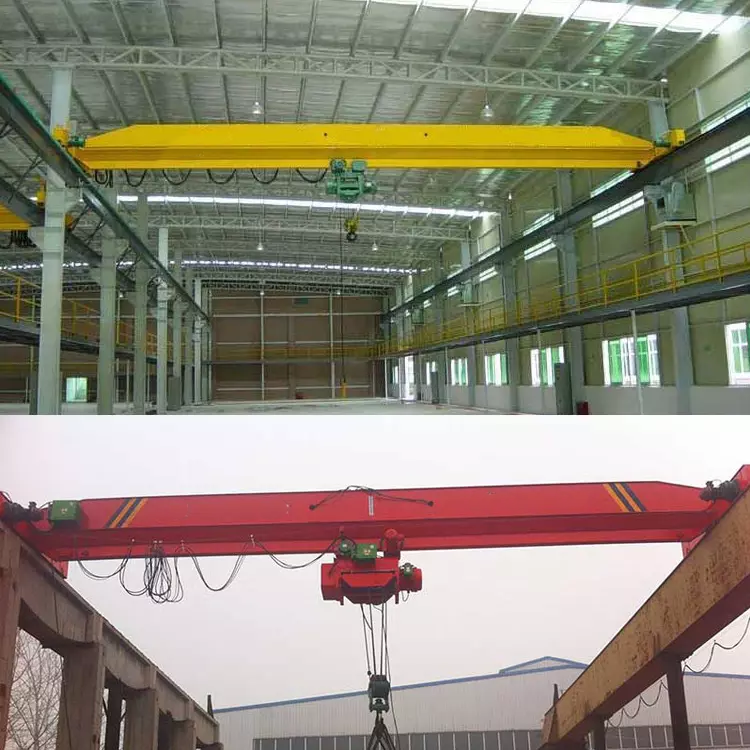

    HVG OVERHEAD CRANE 0003

    Explosion proof Overhead Crane

    • Lifting speed: 5-15M/MIN
    • Trolley running speed: 20-40M/MIN
    • Crane running speed: 50-100M/MIN
    • Working duty: A3-A5
    • Control method: cabin control/wire rope remote control
    • Protection grade: IP54
    • Insulation grade: F
    • Colour: request
    • Power supply: 3 phase 380V 50hz or request

    Advantage:

    • 1. Light working duty. Light dead weight, light wheel-pressure
    • 2. Competitive price
    • 3. Tight dimensions, low building headroom, light dead weight and light wheel load
    • 4. Light working duty. Light dead weight, light wheel-pressure
    • 5. Competitive price
    • 6. Tight dimensions, low building headroom, light dead weight and light wheel load

    Technical specification:

    • Technical Data Sheet
    Mechanism Item Unit Result
    Item
    Lifting capacity ton 1-10ton
    Working grade A3-A5
    Span m 7.5-22.5m
     Working environment temperture °C -25～40
    Travelling mechanism working speed m/min 20
    motor type BZD 21-4 BZD 22-4
    power kw 2*0.8 2*1.5
    rotational speed m/min 1380
    Lifting mechanism lifting speed m/min 8   8/0.8
    lifting height H(m) 6  9  12  18  24  30
    travelling speed m/min 20
    working system A3-A5
    power source three-phase 380V(660V) 50H
