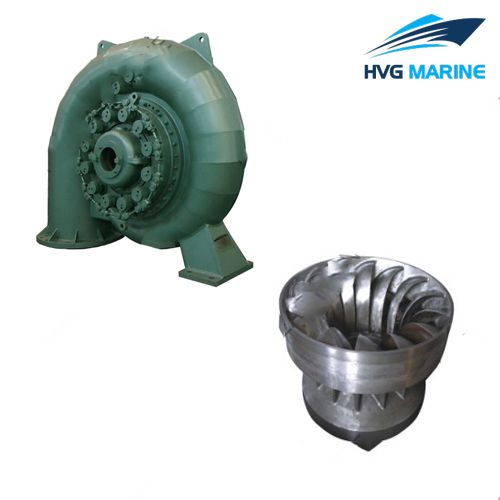

HVG OTHER INDUSTRIAL EQUIPMENT 0104: 630kw Francis Turbine

Francis turbine is a relative advanced unit for developing hydropower stations with medium and high water head. Francis turbines made by HVG Marine, with convenient maintenance, small size, light weight, high hydraulic efficiency, vertical and horizontal, are widely used in hydropower stations. After several years’ research, accumulation and absorbing domestic and foreign advanced technology, we have improved our design and manufacture level to meet the need of hydropower stations with different water power resources.

Technical specification:

This is technical parameters of 630kw horizontal francis turbine with runner diameter 0.5m
This is technical parameters of 630kw horizontal francis turbine with runner diameter 0.6m
This is technical parameters of 630kw horizontal francis turbine with runner diameter 0.71m

Hydraulic Turbine				Turbine Generator			Valve
Design Head(m)	Design Flow(m3/s)	Output(KW)	Speed(r/min)	Power(KW)	Voltage(V)	Efficiency(%)	Model
37	2.20	670	1000	630	6300	93	Φ800 Butterfly Valve
40	2.05	685	1000	630	400	93	Φ800 Butterfly Valve
40	2.10	695	1000	630	6300	93	Φ800 Butterfly Valve
42	1.90	683	1000	630	6300	93	Φ800 Butterfly Valve
45	1.79	688	1000	630	6300	93	Φ800 Butterfly Valve
54	1.53	685	1000	630	6300	93	Φ600 Butterfly Valve
57	1.40	676	1000	630	400	93	Φ600 Butterfly Valve
65	1.25	690	1000	630	400	94	Φ600 Butterfly Valve
66	1.22	677	1000	630	6300	93	Φ500 Butterfly Valve
96	0.83	680	1000	630	400	93	Φ500 Butterfly Valve

Hydraulic Turbine				Turbine Generator			Valve
Design Head(m)	Design Flow(m3/s)	Output(KW)	Speed(r/min)	Power(KW)	Voltage(V)	Efficiency(%)	Model
35	2.41	697	750	630	6300	93	Φ1000 Butterfly Valve
36	2.31	708	750	630	6300	93	Φ1000 Butterfly Valve
37	2.10	678	750	630	400	93	Φ900 Butterfly Valve
45	1.77	672	750	630	6300	94	Φ800 Butterfly Valve
51	1.58	680	750	630	400	94	Φ800 Butterfly Valve

Hydraulic Turbine				Turbine Generator			Valve
Design Head(m)	Design Flow(m3/s)	Output(KW)	Speed(r/min)	Power(KW)	Voltage(V)	Efficiency(%)	Model
32	2.60	726	600	630	400	93	F1000 Butterfly Valve
35	2.27	671	600	630	6300	94	F1000 Butterfly Valve
38	2.12	678	600	630	6300	93	F1000 Butterfly Valve
42	2.90	675	600	630	400	94	F900 Butterfly Valve
