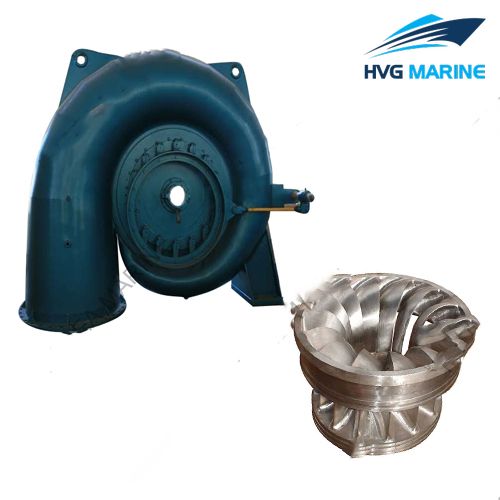

HVG OTHER INDUSTRIAL EQUIPMENT 0102: 1250kw Francis Turbine

Francis turbine is a relative advanced unit for developing hydropower stations with medium and high water head. Francis turbines made by HVG Marine, with convenient maintenance, small size, light weight, high hydraulic efficiency, vertical and horizontal, are widely used in hydropower stations. After several years’ research, accumulation and absorbing domestic and foreign advanced technology, we have improved our design and manufacture level to meet the need of hydropower stations with different water power resources.

Technical specification:

This is technical parameters of 1250kw horizontal francis turbine unit with runner diameter 0.6m
This is technical parameters of 1250kw horizontal francis turbine with runner diameter 0.71m
This is technical parameters of 1250kw horizontal francis turbine with runner diameter 0.84m

Hydraulic Turbine				Turbine Generator			Valve
Design Head(m)	Design Flow(m3/s)	Output(KW)	Speed(r/min)	Power(KW)	Voltage(V)	Efficiency(%)	Model
54	2.93	1332	1000	1250	6300	95	Φ1000 Butterfly Valve
55	2.90	1336	1000	1250	6300	95	Φ1000 Butterfly Valve
62	2.50	1353	1000	1250	6300	95	Φ900 Butterfly Valve
67	2.44	1363	1000	1250	6300	94	Φ800 Butterfly Valve
70	2.24	1343	1000	1250	6300	95	Φ800 Butterfly Valve
79	1.98	1335	1000	1250	6300	95	Φ800 Butterfly Valve

Hydraulic Turbine				Turbine Generator			Valve
Design Head(m)	Design Flow(m3/s)	Output(KW)	Speed(r/min)	Power(KW)	Voltage(V)	Efficiency(%)	Model
45	3.55	1340	750	1250	6300	95	Φ1200 Butterfly Valve
49	3.20	1369	750	1250	6300	95	Φ1000 Butterfly Valve
55	2.87	1331	750	1250	6300	94	Φ1000 Butterfly Valve
63	2.48	1320	750	1250	6300	95	Φ900 Butterfly Valve
67	3.06	1730	750	1250	6300	95	Φ1000 Butterfly Valve

Hydraulic Turbine				Turbine Generator			Valve
Design Head(m)	Design Flow(m3/s)	Output(KW)	Speed(r/min)	Power(KW)	Voltage(V)	Efficiency(%)	Model
35	4.50	1332	500	1250	6300	95	Φ1200 Butterfly Valve
45	3.51	1333	600	1250	6300	94	Φ1200 Butterfly Valve
46	3.30	1325	500	1250	6300	94	Φ900 Butterfly Valve
48	3.20	1356	600	1250	6300	95	Φ900 Butterfly Valve
51	3.66	1317	600	1250	6300	95	Φ1000 Butterfly Valve
