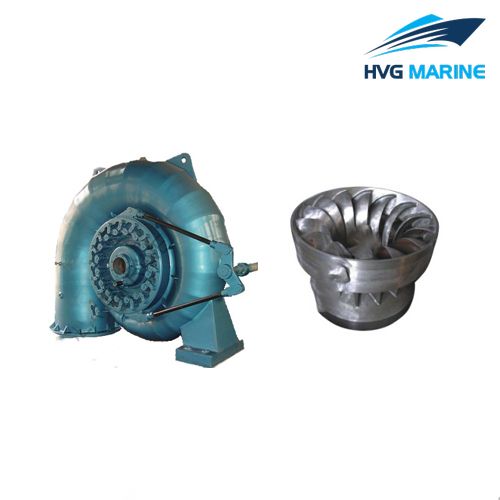

HVG OTHER INDUSTRIAL EQUIPMENT 0103: 800kw Francis Turbine

Francis turbine is a relative advanced unit for developing hydropower stations with medium and high water head. Francis turbines made by HVG Marine, with convenient maintenance, small size, light weight, high hydraulic efficiency, vertical and horizontal, are widely used in hydropower stations. After several years’ research, accumulation and absorbing domestic and foreign advanced technology, we have improved our design and manufacture level to meet the need of hydropower stations with different water power resources.

Technical specification:

This is technical parameters of 800kw horizontal francis turbine unit with runner diameter 0.5m
This is technical parameters of 800kw horizontal francis turbine with runner diameter 0.6m
This is technical parameters of 800kw horizontal francis turbine unit with runner diameter 0.71m

Hydraulic Turbine				Turbine Generator			Valve
Design Head(m)	Design Flow(m3/s)	Output(KW)	Speed(r/min)	Power(KW)	Voltage(V)	Efficiency(%)	Model
45	2.38	880	1000	800	6300	93	Φ800 Butterfly Valve
52	1.95	870	1000	800	6300	94	Φ800 Butterfly Valve
60	1.31	686	1000	800	6300	94	Φ700 Butterfly Valve
62	1.65	782	1000	800	6300	94	Φ600 Butterfly Valve
74	1.43	855	1000	800	6300	94	Φ500 Butterfly Valve
77	1.35	880	1000	800	6300	94	Φ600 Butterfly Valve
80	1.30	887	1000	800	6300	94	Φ700 Butterfly Valve

Hydraulic Turbine				Turbine Generator			Valve
Design Head(m)	Design Flow(m3/s)	Output(KW)	Speed(r/min)	Power(KW)	Voltage(V)	Efficiency(%)	Model
40	2.50	855	750	800	6300	94	Φ1000 Butterfly Valve
43	2.48	895	1000	800	6300	94	Φ1000 Butterfly Valve
50	2.11	873	750	800	6300	94	Φ800 Butterfly Valve
53	1.84	852	750	800	400	93	Φ800 Butterfly Valve
60	1.68	860	750	800	6300	94	Φ800 Butterfly Valve
48	2.65	895	1000	800	6300	94	Φ1000 Butterfly Valve

Hydraulic Turbine				Turbine Generator			Valve
Design Head(m)	Design Flow(m3/s)	Output(KW)	Speed(r/min)	Power(KW)	Voltage(V)	Efficiency(%)	Model
40	2.65	894	600	800	6300	94	Φ1000 Butterfly Valve
42	2.43	860	600	800	6300	94	Φ1000 Butterfly Valve
48	2.10	855	600	800	6300	95	Φ900 Butterfly Valve
