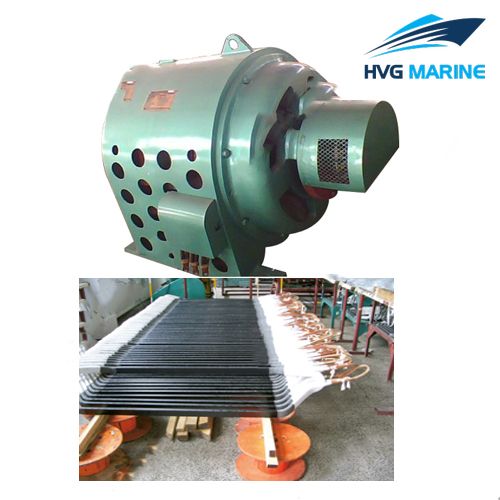

HVG OTHER INDUSTRIAL EQUIPMENT 0099: 400kw Francis Turbine Hydro Generator
The hydro generator made by HVG Marine are synchronous generator which are manufactured with advanced technology and excellent machining equipment and can meet different technical conditions of all kinds of turbines. We provide all kinds of generators covering a capacity from 0.2 to 120MW, maximum speed up to 1500 r/min, F grade insulation class and maximum voltage for coil up to 13.8KV.
This is technical parameters of 400kw francis turbine generator. We also provide 200kw, 320kw, 500kw, 630kw, 800kw, 1000kw, 1250kw, 1600kw, 2000kw, 2500kw, 3200kw, 4000kw, 5000kw, 8000kw, 10000kw, 12500kw, 15000kw and 20000kw generators etc.
| Design Head(m) | Design Flow(m3/s) | Speed(r/min) | Power(KW) | Voltage(V) | Efficiency(%) | Valve Model |
| 29 | 1.85 | 1000 | 400 | 400 | 93 | Φ800 Butterfly Valve |
| 30 | 1.80 | 1000 | 400 | 400 | 93 | Φ800 Butterfly Valve |
| 32 | 1.69 | 750 | 400 | 400 | 93 | Φ800 Butterfly Valve |
| 33 | 1.55 | 750 | 400 | 400 | 93 | Φ800 Butterfly Valve |
| 34 | 1.60 | 1000 | 400 | 400 | 93 | Φ800 Butterfly Valve |
| 35 | 1.52 | 750 | 400 | 400 | 93 | Φ800 Butterfly Valve |
| 41 | 1.13 | 1000 | 400 | 400 | 93 | Φ600 Butterfly Valve |
| 45 | 1.14 | 1000 | 400 | 400 | 93 | Φ600 Butterfly Valve |
| 48 | 1.06 | 1000 | 400 | 400 | 93 | Φ600 Butterfly Valve |
| 48 | 1.15 | 750 | 400 | 400 | 93 | Φ500 Butterfly Valve |
| 58 | 0.90 | 750 | 400 | 400 | 93 | Φ600 Butterfly Valve |
| 73 | 0.74 | 1000 | 400 | 400 | 93 | Φ500 Butterfly Valve |
