HVG OTHER INDUSTRIAL EQUIPMENT 0094: High Quality Pelton Turbine

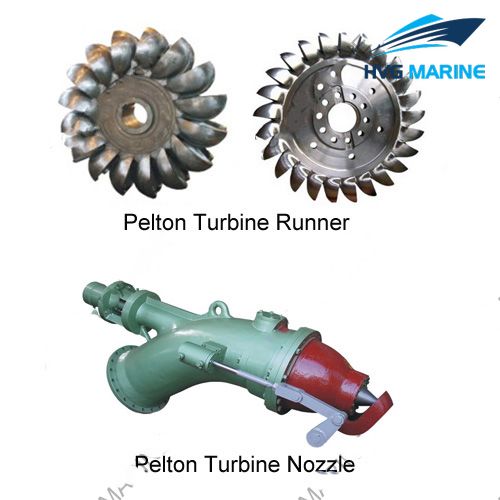

Pelton turbine (also called impulse turbine or action turbine) is the best model for developing high water head with little flow water power resource. It has good characteristics like less investment, high efficiency, small size and compact structure. Pelton turbine units made by HVG Marine are sutable for 80-1000m water head with runner diameter 0.6-1.8m and capacity 100-18000KW. Both vertical and horizontal types can be provided, with single nozzle, twin or multi- nozzles.
Our pelton turbine units are suitable for 150-800m water head with runner diameter 0.9-1.25m and power 630-8000KW. This is technical parameters of 630kw pelton turbine with single nozzle and runner diameter 0.9m.
| Hydraulic Turbine | Turbine Generator | Valve | ||||||
| Jet Diameter(m) | Design Head(m) | Design Flow(m3/s) | Output(KW) | Speed(r/min) | Power(KW) | Voltage(V) | Efficiency(%) | Model |
| 0.11 | 191 | 0.45 | 700 | 600 | 630 | 6300 | 93 | Φ400 Butterfly Valve |
| 0.07 | 238 | 0.38 | 701 | 600 | 630 | 6300 | 93 | Φ400 Butterfly Valve |
