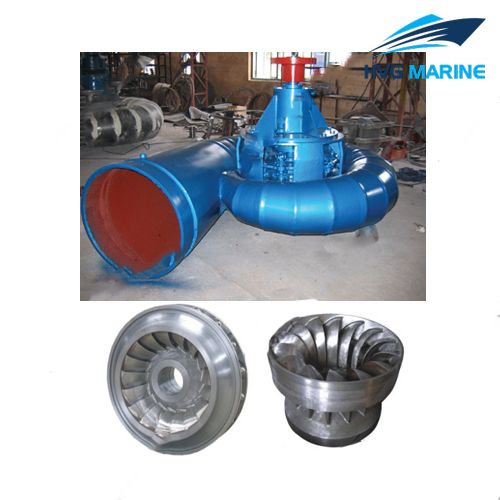

HVG OTHER INDUSTRIAL EQUIPMENT 0100: 20000kw Vertical Francis Turbine
Francis turbine is a relative advanced unit for developing hydropower stations with medium and high water head. Francis turbines made by HVG Marine, with convenient maintenance, small size, light weight, high hydraulic efficiency, vertical and horizontal, are widely used in hydropower stations. After several years’ research, accumulation and absorbing domestic and foreign advanced technology, we have improved our design and manufacture level to meet the need of hydropower stations with different water power resources.
This is technical parameters of 20000kw vertical francis turbine unit with runner diameter 1.6m
| Hydraulic Turbine | Turbine Generator | Valve | |||||
| Design Head(m) | Design Flow(m3/s) | Output(KW) | Speed(r/min) | Power(KW) | Voltage(V) | Efficiency(%) | Model |
| 123 | 18.8 | 21040 | 500 | 20000 | 10500 | 95 | Φ2000 Butterfly Valve |
| 132 | 17.5 | 20660 | 500 | 20000 | 10500 | 95 | Φ2000 Butterfly Valve |
| 135 | 16.8 | 20660 | 500 | 20000 | 10500 | 95 | Φ2000 Gate Valve |
