OFFSHORE EQUIPMENT 0024
    • OFFSHORE EQUIPMENT 0024
    HVG OFFSHORE EQUIPMENT 0024

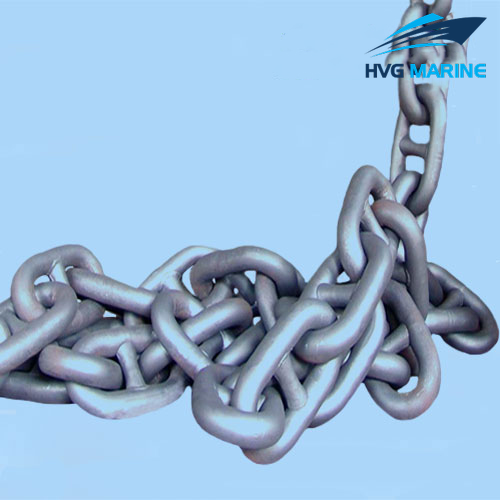

    HVG OFFSHORE EQUIPMENT 0024: Grade R3 Offshore Mooring Chain

    • 1. Type: Offshore Mooring Chain
    • 2. Grade: ABS/RQ3 DNV/NVR3
    • 3. Chain Dia.: 50mm~132mm
    • 4. Tension Load: 1560KN~9090KN
    • 5. Breaking Load: 2230KN~12994KN
    • 6. Material: R3 Offshore Mooring Chain Steel;
    • 7. Available Customized Service
    • 8. Certificate: CCS, ABS,BV, DNV, GL, KR, LR,NK,RINA etc.
    • 9. Application: Mobile Offshore Mooring Unit,Marine Load System,Fixed Offshore Development Facility;
    • 10. Long Service Life
    • 11. High and Stable Mechanical Properties
    • 12. Good Corrosion Resistance,Wear Resistance



    Technical specification:

    • Mechanical Properties of R3 Mooring Chain

    Grade

    Yield Point (N/mm²,min)

    Tensile Strength

    (N/mm²,min)

    Elongation

    (%,min)

    Reduction of Area

    (%,min)

    Impact Test(V-notch )

    Test Temperature

    (℃)

    Impact (J,min)

    Base Part

    Weld Part

    ABS/RQ3

    DNV/NVR3

    410

    690

    17

    50

    0

    60

    50

    -20

    40

    30
