OFFSHORE EQUIPMENT 0023
    • OFFSHORE EQUIPMENT 0023
    HVG OFFSHORE EQUIPMENT 0023

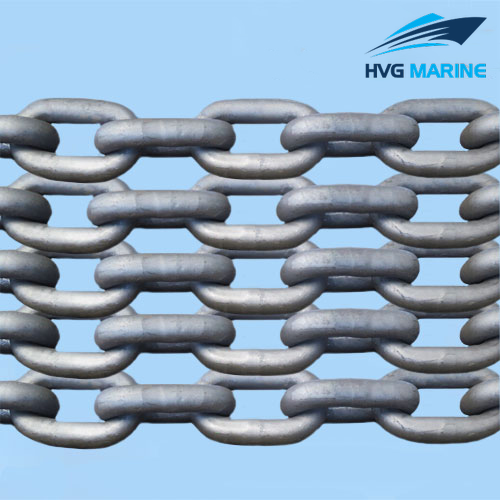

    HVG OFFSHORE EQUIPMENT 0023: Offshore Studless Chain

    • 1. Dia.: 34mm~162mm
    • 2. Grade: R3,R3S,R4
    • 3. Pull Load Range: 745kN~15641kN
    • 4. Breaking Load Range: 1065kN~22321kN
    • 5. Material: Offshore Mooring Chain Steel
    • 6. Certificate: CCS, ABS,BV, DNV, GL, KR, LR,NK,RINA etc.
    • 7. Customized Service is Available

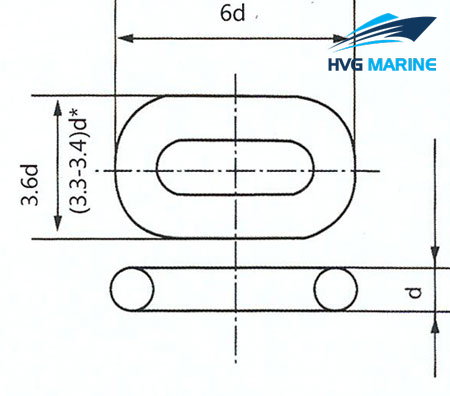

    Studless Link for Mooring Chain

    Technical specification:

    • Testing Load of Studless Chain

    Load(KN)

    R3 Studless Chian

    R3S Studless Chain

    R4 Studless Chain

    Pull Load(PL)

    0.0156d²(44-0.08d)

    0.01743d²(44-0.08d)

    0.01918d²(44-0.08d)

    Breaking Load(BL)

    0.0223d²(44-0.08d)

    0.0249d²(44-0.08d)

    0.0274d²(44-0.08d)
    Note: this load sheet refers to ABS rules and DNV rules, all loading data included in the sheet shall be calculated according to relevant formulas.
