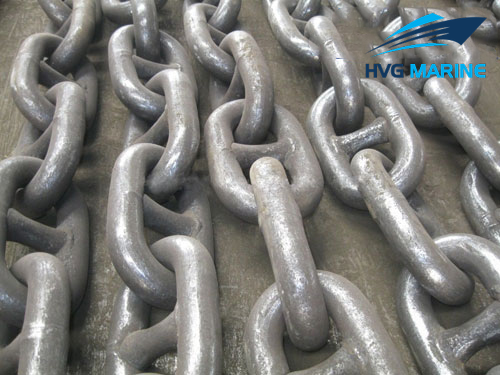

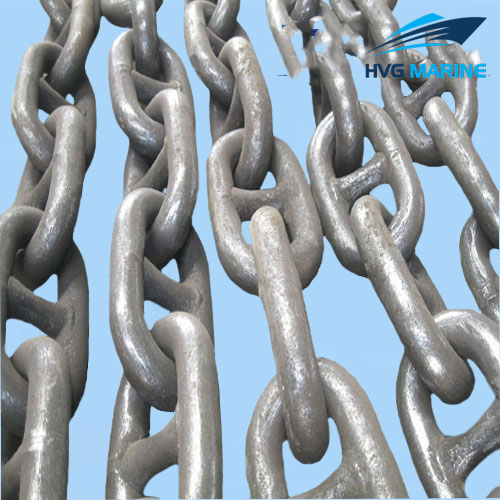

    HVG OFFSHORE EQUIPMENT 0022: Offshore Stud Chain

    • 1. Dia.: 34mm~162mm
    • 2. Grade: R3,R3S,R4
    • 3. Pull Load Range: 745kN~17596kN
    • 4. Breaking Load Range: 1065kN~22321kN
    • 5. Material: Offshore Mooring Chain Steel
    • 6. Certificate: CCS, ABS,BV, DNV, GL, KR, LR,NK,RINA etc.
    • 7. Customized Service is Available

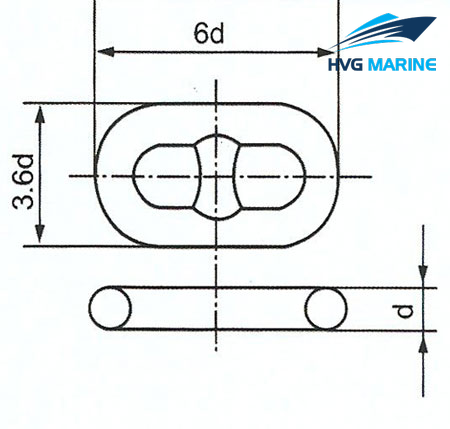

    Stud Common Link

    Technical specification:

    • Testing Load of Stud Chain

    Load(KN)

    R3 Stud Chian

    R3S Stud Chain

    R4 Stud Chain

    Pull Load(PL)

    0.0156d²(44-0.08d)

    0.0180d²(44-0.08d)

    0.0216d²(44-0.08d)

    Breaking Load(BL)

    0.0223d²(44-0.08d)

    0.0249d²(44-0.08d)

    0.0274d²(44-0.08d)
    Note: this load sheet refers to ABS rules and DNV rules, all loading data included in the sheet shall be calculated according to relevant formulas.
