HVG OFFSHORE EQUIPMENT 0021: Studless Link Mooring Chain

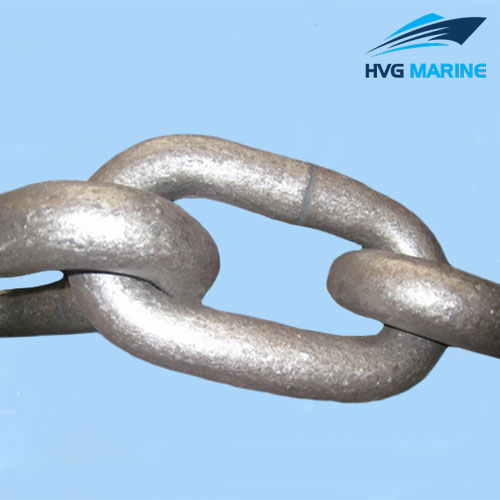

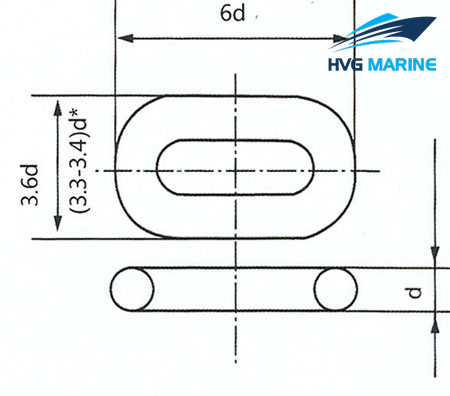

Studless Link for Mooring Chains
|
Load(KN) |
R3 Studless Chian |
R3S Studless Chain |
R4 Studless Chain |
|
Pull Load(PL) |
0.0156d²(44-0.08d) |
0.01743d²(44-0.08d) |
0.01918d²(44-0.08d) |
|
Breaking Load(BL) |
0.0223d²(44-0.08d) |
0.0249d²(44-0.08d) |
0.0274d²(44-0.08d) |
| Note: this load sheet refers to ABS rules and DNV rules, all loading data included in the sheet shall be calculated according to relevant formulas. | |||
| Chain Diameter | R3 | R3S | R4 | |||||
| Stud/Studless Pull Load | Breaking Load | Studless Link Pull Load | Stud Link Pull Load | Breaking Load | Studless Link Pull Load | Stud Link Pull Load | Breaking Load | |
| 70 | 2936 | 4196 | 3274 | 3387 | 4686 | 3613 | 4065 | 5156 |
| 73 | 3173 | 4535 | 3539 | 3661 | 5064 | 3905 | 4393 | 5572 |
| 76 | 3417 | 4885 | 3812 | 3943 | 5454 | 4206 | 4731 | 6002 |
| 78 | 3584 | 5124 | 3998 | 4136 | 5721 | 4411 | 4963 | 6295 |
| 81 | 3841 | 5490 | 4284 | 4432 | 6130 | 4727 | 5318 | 6746 |
| 84 | 4104 | 5866 | 4578 | 4735 | 6550 | 5051 | 5682 | 7028 |
| 87 | 4374 | 6252 | 4879 | 5047 | 6981 | 5383 | 6056 | 7682 |
| 90 | 4651 | 6648 | 5187 | 5366 | 7423 | 5724 | 6439 | 8168 |
| 92 | 4838 | 6916 | 5397 | 5583 | 7723 | 5955 | 6699 | 8498 |
| 95 | 5125 | 7326 | 5717 | 5914 | 8180 | 6308 | 7096 | 9002 |
| 97 | 5320 | 7604 | 5934 | 6138 | 8491 | 6547 | 7366 | 9343 |
| 100 | 5616 | 8028 | 6264 | 6480 | 8964 | 6912 | 7776 | 9864 |
| 102 | 5817 | 8316 | 6489 | 6712 | 9285 | 7160 | 8055 | 10217 |
| 105 | 6123 | 8753 | 6830 | 7065 | 9774 | 7536 | 8478 | 10755 |
| 107 | 6330 | 9049 | 7061 | 7304 | 10104 | 7791 | 8765 | 11118 |
| 111 | 6751 | 9650 | 7530 | 7789 | 10775 | 8309 | 9347 | 11857 |
| 114 | 7072 | 10109 | 7888 | 8160 | 11288 | 8704 | 9792 | 12421 |
| 117 | 7398 | 10575 | 8251 | 8536 | 11808 | 9105 | 10243 | 12993 |
| 120 | 7728 | 11047 | 8620 | 8917 | 12335 | 9511 | 10700 | 13573 |
| 122 | 7951 | 11365 | 8868 | 9174 | 12690 | 9785 | 11008 | 13964 |
| 124 | 8175 | 11686 | 9118 | 9433 | 13048 | 10062 | 11319 | 14358 |
| 127 | 8515 | 12172 | 9498 | 9825 | 13591 | 10480 | 11790 | 14956 |
| 130 | 8859 | 12663 | 9881 | 10222 | 14140 | 10903 | 12266 | 15559 |
| 132 | 9090 | 12994 | 10139 | 10488 | 14509 | 11188 | 12586 | 15965 |
| 137 | 9674 | 13829 | 10791 | 11163 | 15442 | 11907 | 13395 | 16992 |
| 142 | 10268 | 14677 | 11452 | 11847 | 16389 | 12637 | 14217 | 18034 |
| 147 | 10869 | 15536 | 12123 | 12541 | 17348 | 13377 | 15049 | 19089 |
| 152 | 11476 | 16405 | 12800 | 13242 | 18318 | 14125 | 15890 | 20157 |
| 157 | 12090 | 17282 | 13485 | 13950 | 19297 | 14880 | 16740 | 21235 |
| 162 | 12708 | 18166 | 14175 | 14664 | 20284 | 15641 | 17596 | 22321 |
Note: the above testing load sheet is only one part. If you want to know more information, please feel free to contact us.
