HVG MARINE VENTILATION EQUIPMENT 0080

HVG MARINE VENTILATION EQUIPMENT 0080: CWZ Marine Small-size Axial Flow Fan

General

Marine small sized axial fans are suitable for ventilation of kitchen, lavatory, bulkhead, the public place and meeting room etc on the naval and merchant ships.

Features

The fans have low noise,small size,light weight and stable performance etc.The fans also have the features of good anticorrosion,anti-swing,vibration resistance,shock resistance,stable running,safety and reliability.It can be used with 380v/220v,50hz or 440v/220v,60hz.

Structure

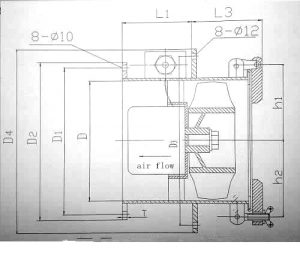

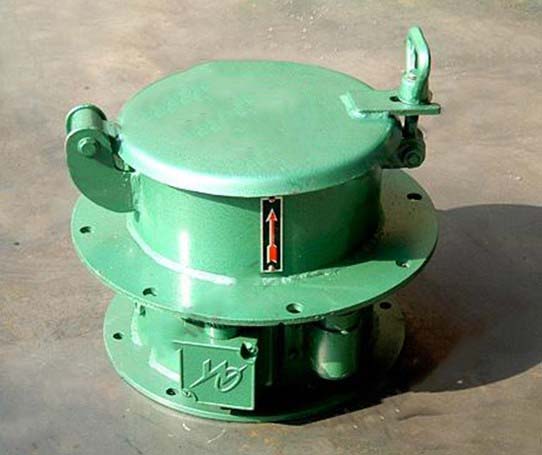

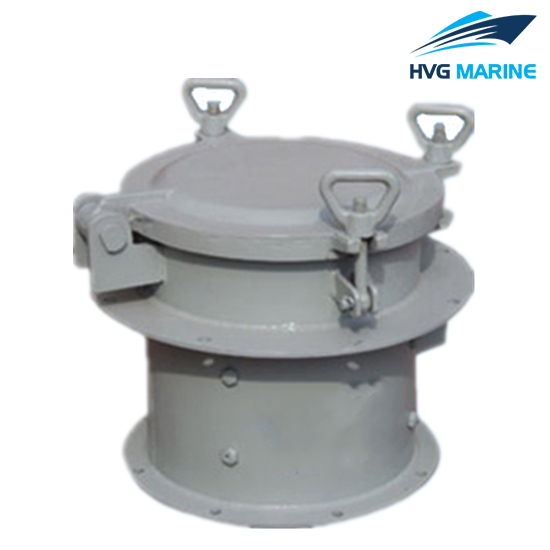

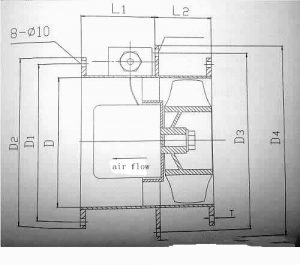

The fans can be made into two structure types, type I (tube type), type II (porthole type). Type I is for ventilation of short tubes or fixed on the bulkhead.Type II is fixed on pothole or bulkhead.Since it is water-proof and can be easily opened or closed to keep rain or sea water out. Impeller is made of aluminium alloy, housing is welded by steel sheet.

Technical specification:

Performance Parameter

Model	Flow rate(m3/h)	Total pressure(Pa)	Speed (r/min)	Frequency(Hz)	Motor power(Kw)	Weight(Kg)
HSCWZ-200D	450	35	1400	50	0.04	14.3
HSCWZ-200D	550	50	1700	60	0.04	14.3
HSCWZ-200G	920	140	2800	50	0.06	15.8
HSCWZ-200G	1120	200	3400	60	0.06	15.8
HSCWZ-224D	650	40	1400	50	0.04	15.8
HSCWZ-224D	790	60	1700	60	0.04	15.8
HSCWZ-224G	1310	160	2800	50	0.12	16.4
HSCWZ-224G	1590	240	3400	60	0.12	16.4
HSCWZ-250D	910	50	1400	50	0.04	16.2
HSCWZ-250D	1100	75	1700	60	0.04	16.2
HSCWZ-250G	1810	200	2800	50	0.25	17.2
HSCWZ-250G	2210	300	3400	60	0.25	17.2
HSCWZ-280	1280	65	1400	50	0.09	20
HSCWZ-280	1550	95	1700	60	0.09	20
