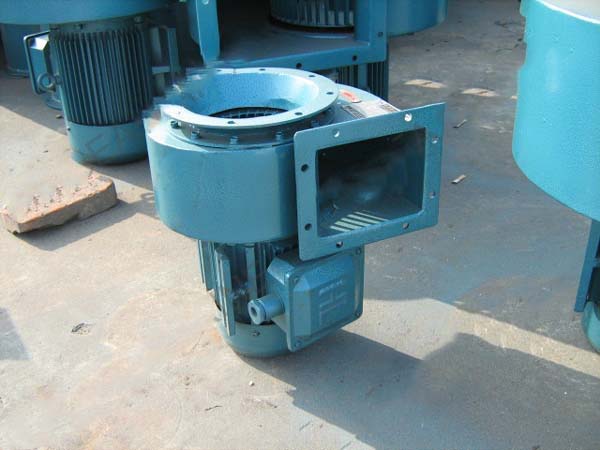

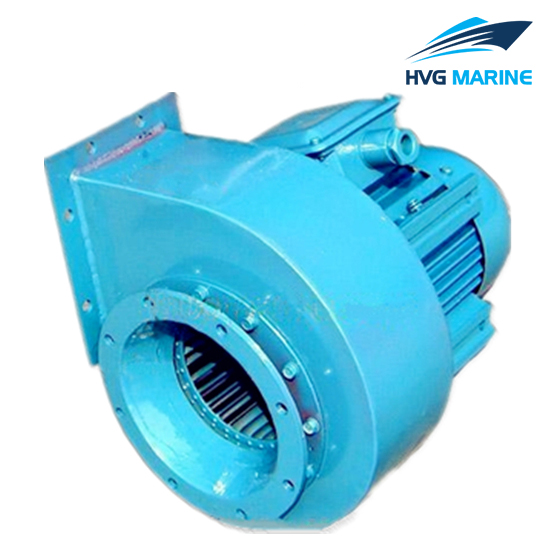

HVG MARINE VENTILATION EQUIPMENT 0078: CWL(CXL) Small-size Marine Centrifugal Fan
Applications :
- CWL（CXL）series marine small-size centrifugal fans is capable of blowing air, ocean air containing salt vapour, and corrosive air which contains oil vapour.
- It can be used for ventilation of kitchen, toilet, wardrobe, meeting room and each cabin, as well as other suitable place land chemical industry and metallurgy.
- This series fans with Explosion-proof motors can delivered gas mixtures or vapour containing combustibles and explosives, it can run normally at danger field.
- CWL（CXL）series fans fit with Marine three-phase tiny asynchronous motors. Its power can be 380/220V and 50/60Hz.(For some specific fans with YB series motor, its power can’t be 220V).
Standard :
- 2.1. Conformed to the prescription of GB11799-89 MARINE EXPLOSION-PROOF FAN TESTING, TECHNIC DEMAND, CHECK AND ACCEPT.
- 2.2. Conformed to the prescription of THE MARINE USE DEMAND OF SHIP INSPECT OFFICE STEEL SHIP ENTRANCE DEGREE AND BUILD STANDARD.
- 2.3.Conformed to the prescription of THE WARSHIP USE DEMAND of THE CPLA SHIP BUILD STANDARD.
Features :
- 3.1. High parameter of pressure (H>1.4), high parameter of capacities (Q>0.5), high efficiency (η>65).
- 3.2. Light in weight, small in size, reliable in operation, low noise.
- 3.3. Performance parameter is various and application field is wide.
- 3.4. High strength, good anticorrosion.
- 3.5. Strong resistance against swing, vibration and impact.
Working Condition :
- Ambient temperature : -25～+55℃
- Max relative humidity : 95%
- Periodical swing : 45°
- Sustained horizontal swing: ±15°
- Sustained vertical swing : ±10°
- Vibration : existent
- Shock : existent

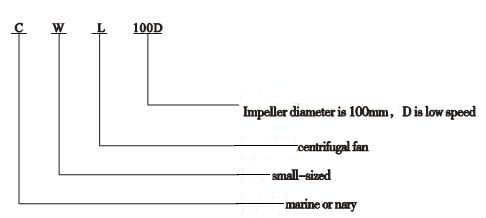

Model Explanation :

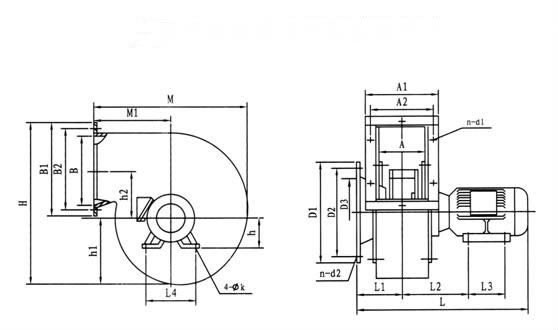

Structure :
