HVG MARINE VENTILATION EQUIPMENT 0015: Non-heat insulation T-piece

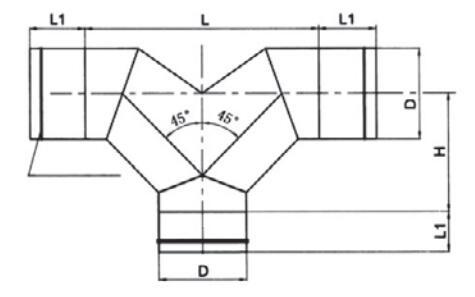

Drawing
HVG MARINE VENTILATION EQUIPMENT 0015
Technical specification:
- Main Specification
|
Specifications |
D |
D1 |
L |
H |
L1 |
|
Y80/80 |
78 |
78 |
205 |
100 |
40 |
|
Y100/80 |
98 |
78 |
255 |
125 |
40 |
|
Y100/100 |
98 |
98 |
255 |
125 |
40 |
|
Y125/80 |
123 |
78 |
320 |
160 |
40 |
|
Y125/100 |
123 |
98 |
320 |
160 |
40 |
|
Y125/125 |
123 |
123 |
320 |
160 |
40 |
|
Y150/80 |
148 |
78 |
380 |
190 |
40 |
|
Y150/100 |
148 |
98 |
380 |
190 |
40 |
|
Y150/125 |
148 |
123 |
380 |
190 |
40 |
|
Y150/150 |
148 |
148 |
380 |
190 |
40 |
|
Y160/80 |
158 |
78 |
405 |
205 |
40 |
|
Y160/100 |
158 |
98 |
405 |
205 |
40 |
|
Y160/125 |
158 |
123 |
405 |
205 |
40 |
|
Y160/160 |
158 |
158 |
405 |
205 |
40 |
|
Y175/80 |
173 |
78 |
445 |
220 |
40 |
|
Y175/100 |
173 |
98 |
445 |
220 |
40 |
|
Y175/125 |
173 |
123 |
445 |
220 |
40 |
|
Y175/150 |
173 |
148 |
445 |
220 |
40 |
|
Y175/160 |
173 |
158 |
445 |
220 |
40 |
|
Y175/175 |
173 |
173 |
510 |
220 |
40 |
|
Y200/80 |
198 |
78 |
510 |
255 |
40 |
|
Y200/100 |
198 |
98 |
510 |
255 |
40 |
|
Y200/125 |
198 |
123 |
510 |
255 |
40 |
|
Y200/160 |
198 |
158 |
510 |
255 |
40 |
|
Y200/200 |
198 |
198 |
510 |
255 |
40 |
