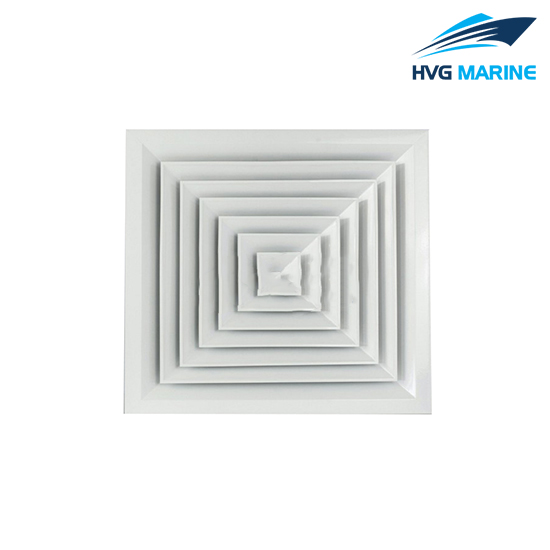

    HVG MARINE VENTILATION EQUIPMENT 0011: Square Diffuser

    Description

    • The inner cone blade and the outer frame are of a separate structure for installation and adjustment. Blowing out airflow is attached (flat).
    • Material：Aluminum alloy profile
    • Surface treatment: electrostatic spray, baking or anodizing

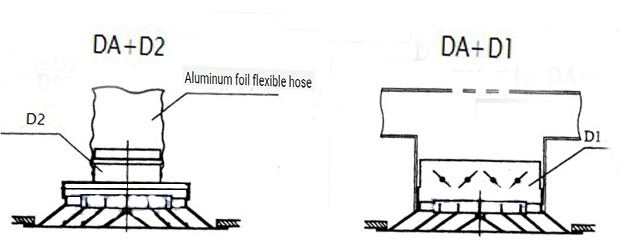

    • Can be added accessories: (D1)air volume adjustment switch, (D2)square cover

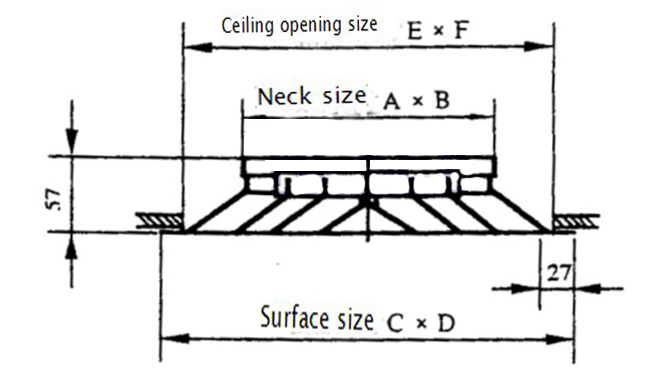

    Drawing:

    Technical specification:

    • Specification
    • Technical parameters for your reference
    A×B C×D E×F
    240×240 363×363 312×312
    300×300 423×423 372×372
    360×360 483×483 432×432
    420×420 543×543 492×492

    Specification

    Jet distance

    Air volume

    （Q m3/h）

    Central wind speed （Vx m/sec）

    Vx =0.5 m/sec

    Vx =0.25 m/sec

    S=0.5 m

    S=1.0 m

    S=2.0 m

    S=3.0 m

    240×240

    1.39

    –

    415-1659

    1.69-6.79

    0.78-3.12

    0.42-1.68

    –

    300×300

    0.77-3.73

    1.38-2.4

    648-2592

    0.82-3.28

    0.36-1.42

    0.18-0.72

    0.14-0.56

    360×360

    0.612-7.25

    –

    933-3700

    0.66-2.656

    0.32-1.28

    0.18-0.72

    –

    420×420

    0.96-2.73

    2.73

    1270-5080

    0.756-3.024

    0.48-1.92

    0.276-1.104

    0.12-0.48
