HVG MARINE VENTILATION EQUIPMENT 0007

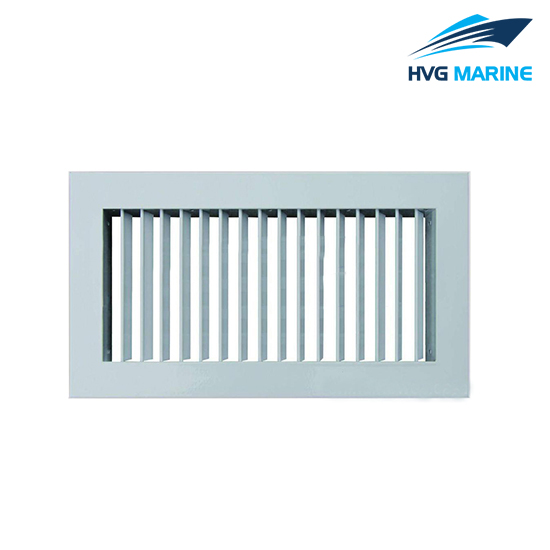

HVG MARINE VENTILATION EQUIPMENT 0007: Single-layer grille air outlet

Description

The tuyere blades are arbitrarily adjusted in the range of 0 to 180 degrees, and the blades are adjusted to different angles to obtain different air supply distances and different diffusion angles. It can be used as a return air outlet.
Material:aluminum alloy profiles
Surface treatment:electrostatic spray, baking or anodizing
Can be added accessories:G1 air volume adjustment switch, G3 air deflector
According to your specification, please offer drawings.

Attention

The air blown out by the wall-type grid outlet iscaused by the differencebetween the airflow after the blow-out and the temperature of the air passing through the blow port and the temperature of the room, which causes the blown airflow to sink. Therefore, it must be listed as Factors to be considered, otherwise the opposite effect is often caused by poor air distribution points.

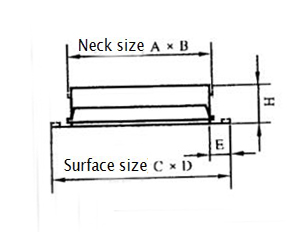

Drawing

Technical specification:

Specification

Specification A×B
150×150	300×150	350×300	400×400	500×300
200×150	300×200	350×350	450×250	500×350
200×200	300×250	400×200	450×300	500×400
250×150	300×300	400×250	450×350	500×450
250×200	350×200	400×300	450×400	500×500
250×250	350×250	400×350	400×450
