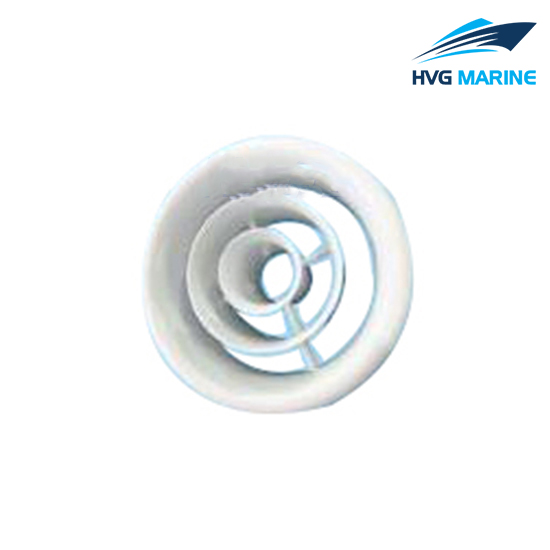

Ring type adjustable jet air outlet
Description

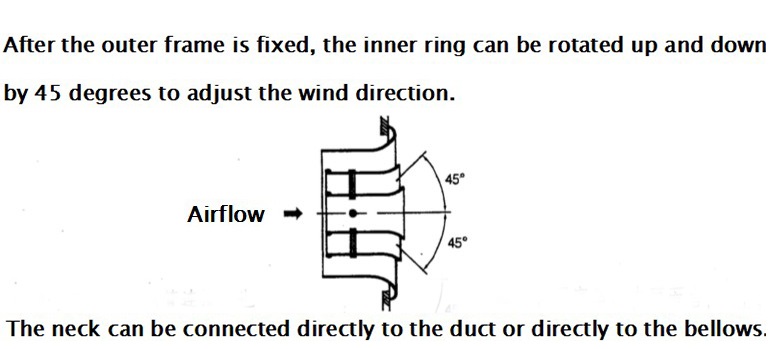

Suitable for occasions with far-reaching blows, the tuyere resistance is small, and the wind speed has a long range.The inner ring can be rotated up and down 45 degrees to adjust the wind direction.
Material:Aluminum plate
Surface treatment: electrostatic spray, baking finish or anodizing.
Neck size:ø150 ø200 ø250 ø300 ø350
If you need other specification, we can provide customized service for you.
Drawing
| C | A | B | H |
| ø150 | Ø193 | ø165 | 60 |
| ø200 | Ø243 | Ø215 | 70 |
| ø250 | Ø293 | Ø265 | 80 |
| ø300 | Ø343 | Ø315 | 90 |
| ø350 | Ø393 | Ø365 | 100 |
|
Neck Size |
Wind speed(M/S) |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
|
Total pressure loss |
0.7 |
1.5 |
1.7 |
2.5 |
3.2 |
4.8 |
6.6 |
8.6 |
|
|
ø150 |
Air volume |
130 |
196 |
262 |
328 |
393 |
460 |
525 |
655 |
|
Arrival distance |
2.6 |
4.0 |
5.5 |
6.8 |
8.2 |
9.6 |
11.0 |
15.2 |
|
|
NC |
– |
26 |
30 |
36 |
43 |
49 |
53 |
56 |
|
|
Ø200 |
Air volume |
233 |
350 |
467 |
583 |
700 |
816 |
933 |
1166 |
|
Arrival distance |
3.8 |
5.6 |
7.4 |
9.2 |
11.0 |
13.0 |
14.7 |
20.5 |
|
|
NC |
– |
26 |
30 |
36 |
43 |
49 |
53 |
56 |
|
|
Ø250 |
Air volume |
365 |
548 |
730 |
916 |
1095 |
1280 |
1460 |
1825 |
|
Arrival distance |
4.6 |
7.0 |
9.5 |
11.6 |
13.8 |
16.2 |
18.5 |
25.4 |
|
|
NC |
– |
24 |
28 |
33 |
38 |
42 |
46 |
50 |
|
|
Ø300 |
Air volume |
526 |
790 |
1052 |
1315 |
1580 |
1842 |
2105 |
2632 |
|
Arrival distance |
5.6 |
8.4 |
11.2 |
14.0 |
16.8 |
19.5 |
22.2 |
32.0 |
|
|
NC |
– |
24 |
29 |
33 |
38 |
42 |
46 |
50 |
|
|
Ø350 |
Air volume |
705 |
1057 |
1410 |
1762 |
2115 |
2467 |
2820 |
3525 |
|
Arrival distance |
6.5 |
9.6 |
13.0 |
16.3 |
19.5 |
22.6 |
25.6 |
32.5 |
|
|
NC |
– |
25 |
30 |
34 |
40 |
43 |
47 |
51 |
