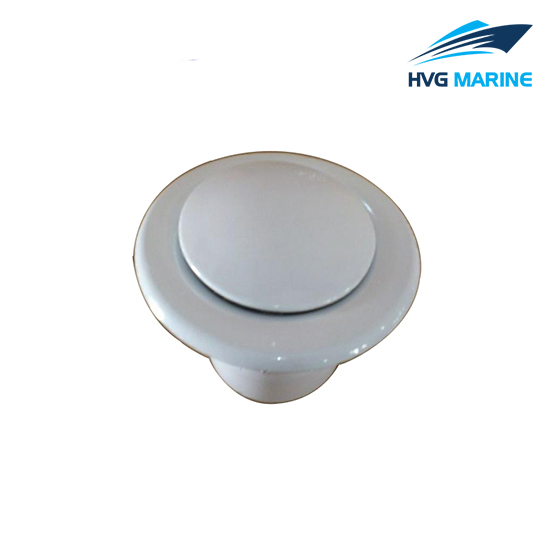

HVG MARINE VENTILATION EQUIPMENT 0014: DFT-A Exhaust register

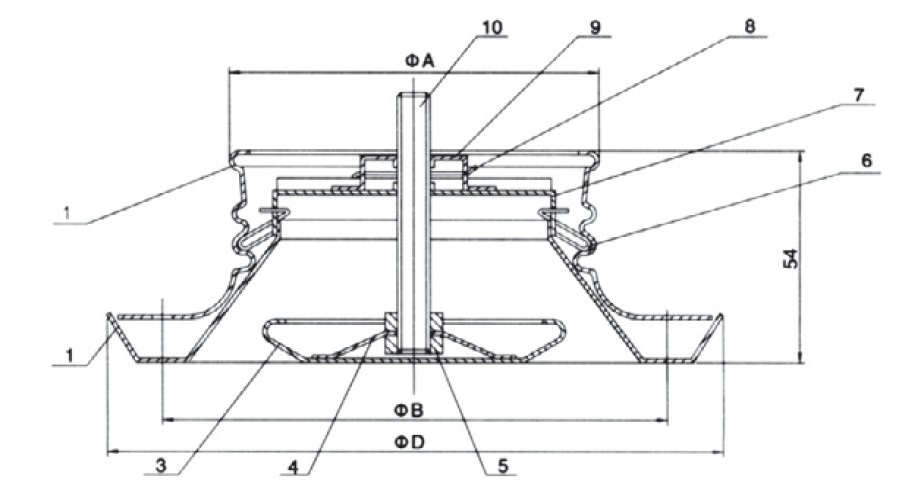

Drawing
1. Exhaust flange 2. Exhaust disk 3. Adjusting plate 4. adjusting plate fixed seat 5. Nut 6. Spring steel wire 7. Exhaust cross 9. Fixed support 10. Screw stem
HVG MARINE VENTILATION EQUIPMENT 0014
Technical specification:
- Specification
| Specification | A | B | D |
| DEF-A-100 | 97.5 | 130 | 148 |
| DEF-A-125 | 122.5 | 155 | 175 |
| DEF-A-160 | 157 | 190 | 216 |
| DEF-A-200 | 197 | 230 | 254 |
