HVG MARINE STEEL 0079

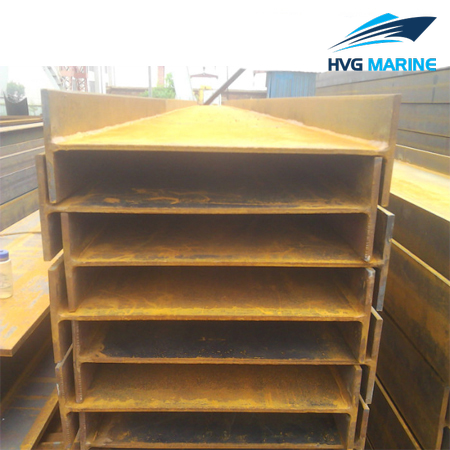

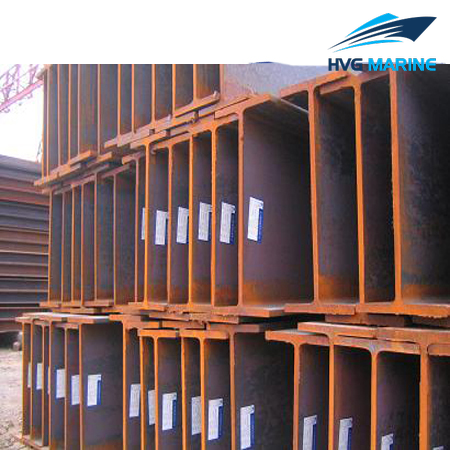

HVG MARINE STEEL 0079: Hot Rolled H Beams

The hot rolled H beam is a kind of hot rolled structural steel section which are widely used in buildings, ships and bridges. H-beams are also known as “H-sections”, “universal columns”, “wide flange beams”, or “W-section I beams”. The H-shaped section is a very efficient form for carrying both bending and shear loads in the plane of web. The application of hot rolled H beams will reduce the end-product weight, cut down expenditure. The hot rolled H beams feature good mechanical properties, rational profiles, and less internal stress. Besides, they are standard-sized, well-shaped and reliable. The hot rolled H beams offered are manufactured according to GB/T11263-2010. The available materials are: Q235A, Q235B, Q235C, Q235D, Q345A, Q345B, Q345C, Q345D, Q390A, Q390B, Q390C. The main dimension range provided is as following: HW 100×100~400×400mm, HM 150×100~600×300mm, HN 150×75~900×300mm. If you are interested in our H beams, welcome to contact us.

Features

To meet GB/T11263-2010
Hot rolled, standard-sized, high reliability
The economical H section which helps to reduce the workload of welding and riveting
A large range of dimensions
High cost performance

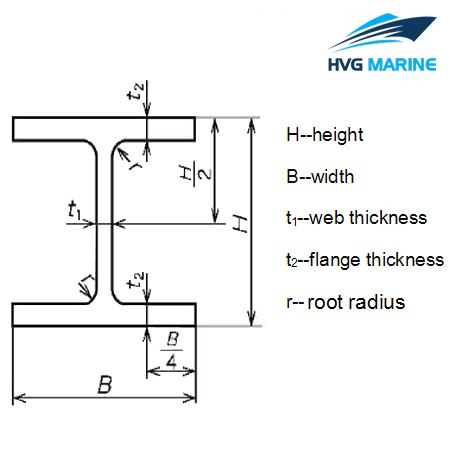

Profile of Hot Rolled H Beams

Technical specification:

Some Dimensions

Model	Designation mm×mm	Section Dimension
Model	Designation mm×mm	H	B	t1	t2	r
HW	100×100	100	100	6	8	8
	125×125	125	125	6.5	9	8
	150×150	150	150	7	10	8
	175×175	175	175	7.5	11	13
	200×200	200	200	8	12	13
	200×200	*200	204	12	12	13
	250×250	*244	252	11	11	13
		250	250	9	11	13
		*250	255	14	14	13
	300×300	*294	302	12	12	13
		300	300	10	15	13
		*300	305	15	15	13
	350×350	*338	351	13	13	13
		*344	348	10	16	13
		*344	354	16	16	13
		350	350	12	19	13
		*350	357	19	19	13
	400×400	*388	402	15	15	22
		*394	398	11	18	22
		*394	405	18	18	22
		400	400	13	21	22
		*400	408	21	21	22
		*414	405	18	28	22
		*428	407	20	35	22
		*458	417	30	50	22
		*498	432	45	70	22

Notes: 1. HM represents H-beams with wide flanges.

2.Due to limited space, dimensions of HM(H-beams with middle flanges) and HN(H-beams with narrow flanges) are not described. If you want to know more details, please contact us.
