HVG MARINE STEEL 0076

HVG MARINE STEEL 0076: Wide Flange Beams

Wide flange beams are a kind of steel section with efficient profiles. The profiles offer many benefits compared with alternative methods for manufacturing steel components. These include: first, cost and time savings–by eliminating the need for fabrication work and multiple handling; second, reliable and repeatable processing–through tight dimensional tolerances and more uniform mechanical properties; third, reduced end-product weight–by combining profile shapes with an appropriate steel composition. The wide flange beams are widely used in building structures, bridges, ships… We are professional supplier of section steel. We are able to provide you wide flange beams made of various materials. Besides we provide you a wide range of dimensions. If you want to know more details about wide flange beams, welcome to contact us.

Features

Excellent quality from top steel mills
Hot-rolled structural steel sections
Rational profiles–cost and time savings
Full selection of dimensions
Excellent mechanical properties, Well-shaped and reliable

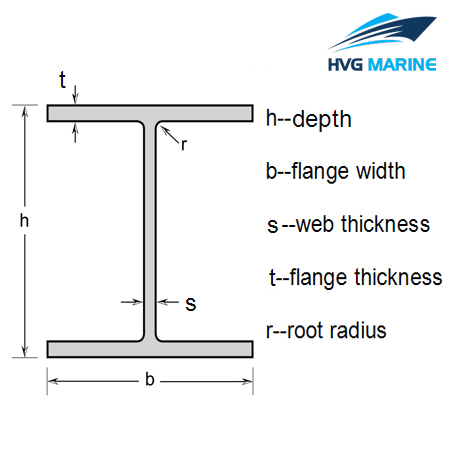

Profile of Wide Flange Beams

Technical specification:

Wide Flange Beams Offered

Adopted Standard	Data
Chinese Standard	GB/T 12263-2010	Steel Grades	Q235A, Q235B, Q235C, Q235D Q345A, Q345B, Q345C, Q345D Q390A, Q390B, Q390C
		Dimensions h×b (mm)	HW 100×100~400×400 HM 150×100~600×300 HN 150×75~900×300
		Length (m)	6~18m or as per customer’s requirements
American Standard	ASTM A6/A6M	Steel Grades	GR50, GR55, GR60, GR65 A36, A43, D36, DH36
		Designation (in.)	W12
British Standard	BS 4-1 BS4360 EN 10034	Steel Grades	40B, 50B, 50C, 55C, S450J0
		Designation (mm)	UC 152×152×23~UC 356×406×634
European Standard	EN 10034 EN 10025	Steel Grades	S235J0, S235J2, S235JR S275J0, S275J2, S275JR S355J0, S355J2, S355JR, S355J2+N
		Designation (mm)	HE 100~500 IPE 140~500 HP 305
Japanese	JIS G3101 JIS G3106 JIS G3136 JIS G3192	Steel Grades	SS400, SS490, SM490, SN490
		Dimensions h×b (mm)	HW 100×100~400×400 HM 150×100~600×300 HN 150×75~900×300
South Korean Standard	KS D3503 KS D3502	Steel Grade	SS400
		Dimensions h×b (mm)	HW 100×100~400×400 HM 150×100~600×300 HN 150×75~900×300
NOTE	If you have any specific requirements, welcome to contact us.
