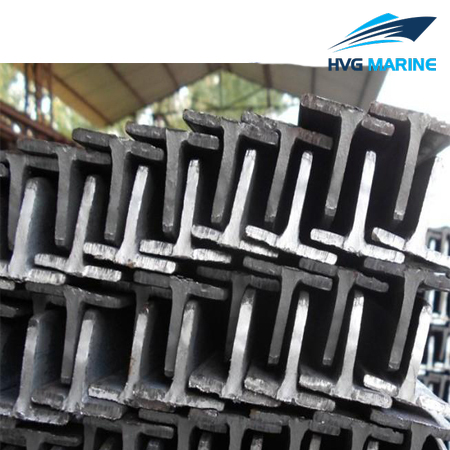

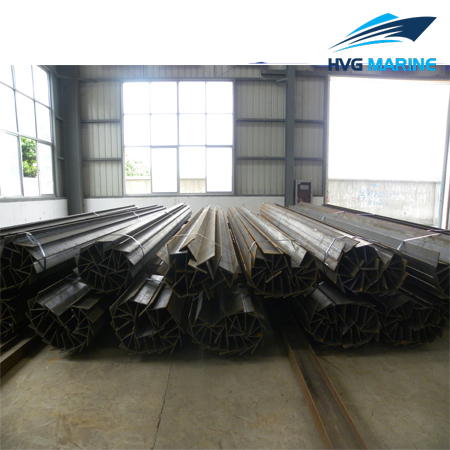

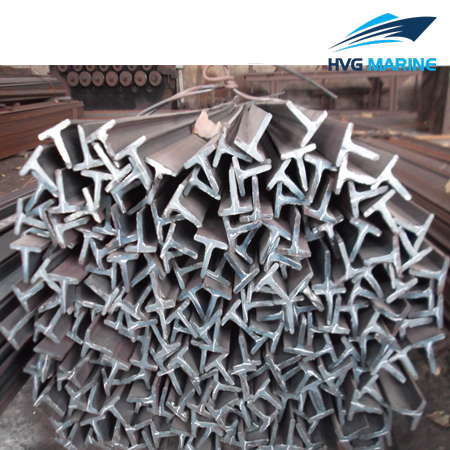

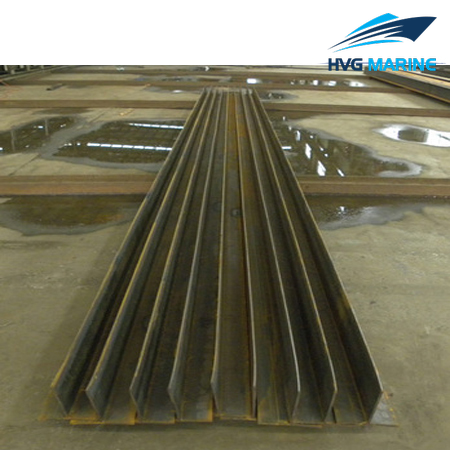

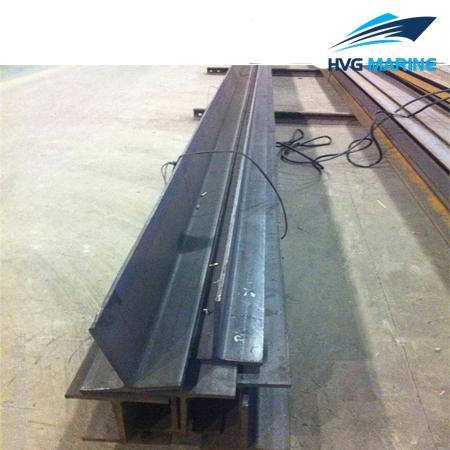

HVG MARINE STEEL 0072: Steel T-Sections for Shipbuilding

The T sections are a kind of efficient steel section. they feature high bending strength, light weight , cost and time savings. The steel T-sections provided are designed for ship uses. There are two types steel T-sections for shipbuilding: one is hot rolled steel T-sections for shipbuilding, the another is welded steel T-sections for shipbuilding. They are manufactured according to GB/T 3433-2013. We are able to supply steel T-sections for shipbuilding made of various materials, such as Q235, Q345, CCSA… The mainly dimensional range is as following: height 100~600mm, width 50~200mm, web thickness 4~15mm, flange thickness 7~28mm. If you have any specific requirements, please contact us. We will try our best to fulfill your requirements.

Features

To meet GB/T 3433-2013
Two types: hot rolled and welded
Designed for shipbuilding and marine structures
Manufactured by top steel mills
Full selection of materials and dimensions
High quality
Standard-sized, well-shaped and reliable

Technical specification:

Dimensions

Model		Sectional Dimension
Model		H	B	t1	t2	Inclination	r
10	b	100	54	4	7	1:10	2.5
10	a	100	55	5	7	1:10
12	c	120	60	4	5	—
	b	120	65	5	9	1:10
	a	120	66	6	9	1:10
15	c	150	75	4	6	—
	b	150	65	5	9	1:10
	a	150	67	7	9	1:10
18	c	180	90	5	7	—	3
	b	180	89	6	11	1:10
	a	180	90	7	11	1:10
21	c	210	100	6	8	—
	b	210	90	7	11	1:10
	a	210	91	8	11	1:10
24	c	240	120	7	9	—	3.5
	b	240	119	8	13	1:10
	a	270	120	9	13	1:10
27	c	270	130	7	10	—
	b	270	119	8	13	1:10
	a	300	121	10	13	1:10
30	c	300	150	8	12	—	4
	b	300	138	9	16	1:10
	a	350	140	11
35	b	350	139	10
35	(a)	350	141	12
40	c	400	180	8	12	—	5
	b	400	158	10	20	1:10
	a	400	160	12
45(a)		450	161	13
50a		500	180	14	24		6
55(a)		550	181	15	24		6
60a		600	200	15	28		6
