HVG MARINE STEEL 0078

HVG MARINE STEEL 0078: Steel W-Type I-Beams

Steel W-type I-beams are a kind of hot rolled section steel. They are also known as “H-sections”, “universal columns”, “wide flange beams”, or “W-section I beams”. The steel W-type I-beams are widely used in building structures, bridges, ships… The section of W-type I-beams is a very efficient form for carrying both bending and shear loads in the plane of web. The application of steel W-type I-beams will reduce the final products’ weight and cut down expenditure. We are capable of supplying steel W-type I-beams which are manufactured under different standards. The standards are: GB/T 12263-2010, ASTM A6/A6M, JIS G3192, JIS G 3106, JIS G 3101, JIS G 3106, KS D 3503, KS D 3502, EN 10025, EN10034. We provide you full selection of dimensions and steel grades. All steel W-type I-beams are manufactured by top steel mills with highest quality standards. If you are interested in our steel W-type I-beams, welcome to contact us. We will try our best to fulfill your requirements.

Why choose us?

Excellent quality products from top steel mills
A wide range of steel grades and dimensions
Various applicable standards
Good service to fulfill customers’ demands
Rich experience in import and export trade

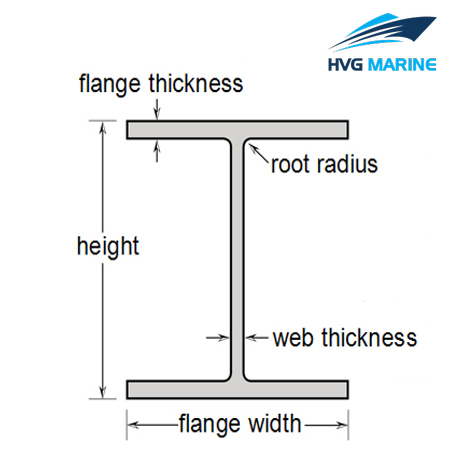

Profile of Steel W-Type I-Beams

Technical specification:

Steel W-Type I-Beams Offered

Adopted Standard	Data
Chinese Standard	GB/T 12263-2010	Steel Grades	Q235A, Q235B, Q235C, Q235D Q345A, Q345B, Q345C, Q345D Q390A, Q390B, Q390C
		Dimensions h×b (mm)	HW 100×100~400×400 HM 150×100~600×300 HN 150×75~900×300
		Length (m)	6~18m or as per customer’s requirements
American Standard	ASTM A6/A6M	Steel Grades	GR50, GR55, GR60, GR65 A36, A43, D36, DH36
		Designation (in.)	W12
British Standard	BS 4-1 BS4360 EN 10034	Steel Grades	40B, 50B, 50C, 55C, S450J0
		Designation (mm)	UC 152×152×23~UC 356×406×634
European Standard	EN 10034 EN 10025	Steel Grades	S235J0, S235J2, S235JR S275J0, S275J2, S275JR S355J0, S355J2, S355JR, S355J2+N
		Designation (mm)	HE 100~500 IPE 140~500 HP 305
Japanese Standard	JIS G3101 JIS G3106 JIS G3136 JIS G3192	Steel Grades	SS400, SS490, SM490, SN490
		Dimensions h×b (mm)	HW 100×100~400×400 HM 150×100~600×300 HN 150×75~900×300
South Korean Standard	KS D3503 KS D3502	Steel Grade	SS400
		Dimensions h×b (mm)	HW 100×100~400×400 HM 150×100~600×300 HN 150×75~900×300
NOTE	If you have any specific requirements, welcome to contact us.
