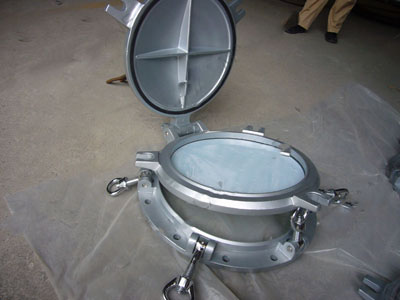

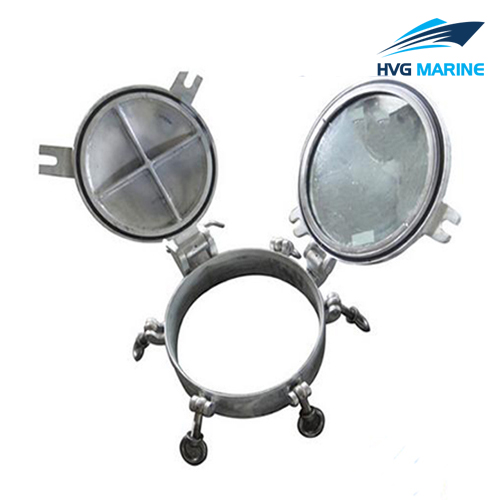

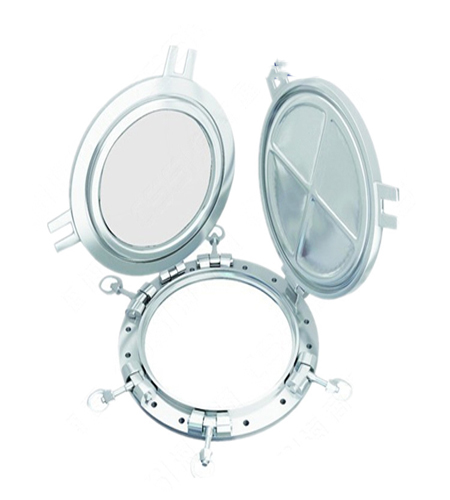

HVG MARINE OUTFITTING EQUIPMENT 0382: Side Scuttle for Ship
Made with cooper and steel, this type ship side scuttle is used in the space below bulkhead deck or freeboard deck of marine ships, which are allowed to cut openings on the sides and required to be watertight and airtight. This side scuttle for ship also conforms to the related requirements of these certificates CCS, DNV, BV, LR, KR, NK, etc.
Combination of materials:
|
Type |
Install type |
Material |
Material Code |
||
|
Main frame |
Glass holder and fastener |
Deadlight |
|||
|
A |
Bolted type |
Copper(1) |
Copper(1) |
Steel(2) |
112 |
|
Welding type |
Steel(2) |
Copper(1) |
Steel(2) |
212 |
|
|
Steel(2) |
Steel(2) |
Steel(2) |
222 |
||
Opening and fastening model of deadlight:
| Clear light size (D: mm) | 200 | 250 | 300 | 350 | 400 | 450 | |
| Min. distance from side scuttle center to ceiling (H: mm) | Paw type (J) | 350 | 400 | 450 | 500 | 540 | 580 |
| Hook type(G) |
Customized |
||||||
Drawing and specifications:

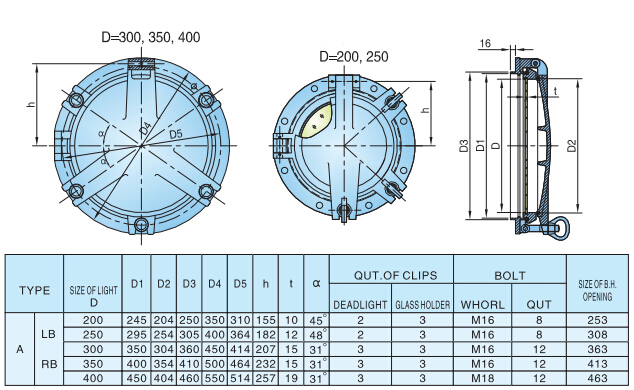

Drawing of Type A-LB/RB

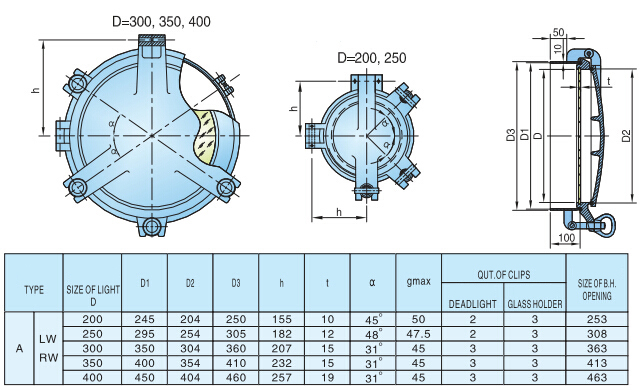

Drawing of Type A-LW/RW

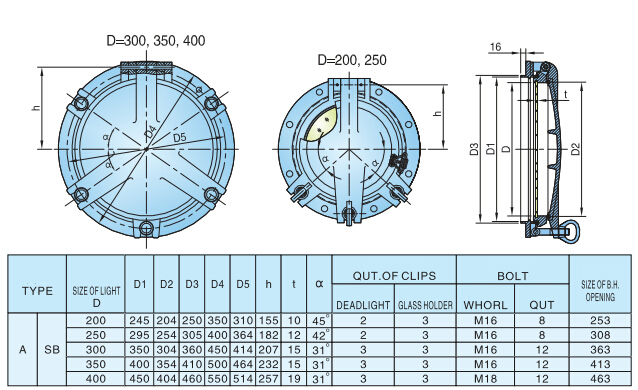

Drawing of Type A-SB

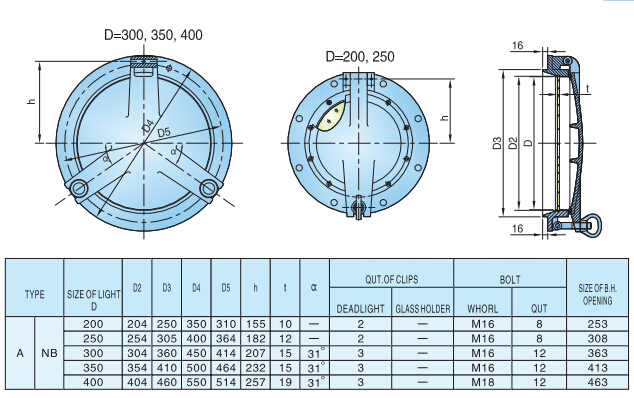

Drawing of Type A-NB

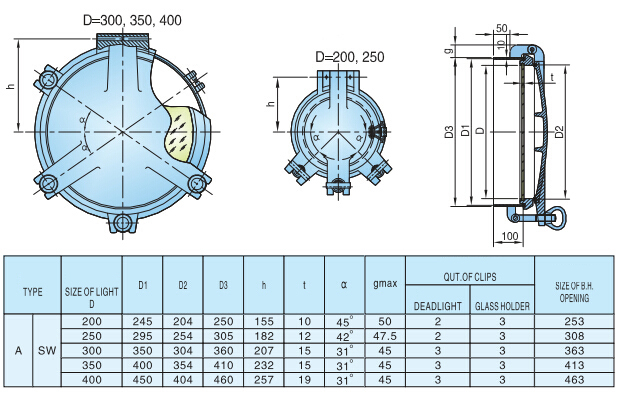

Drawing of Type A-SW

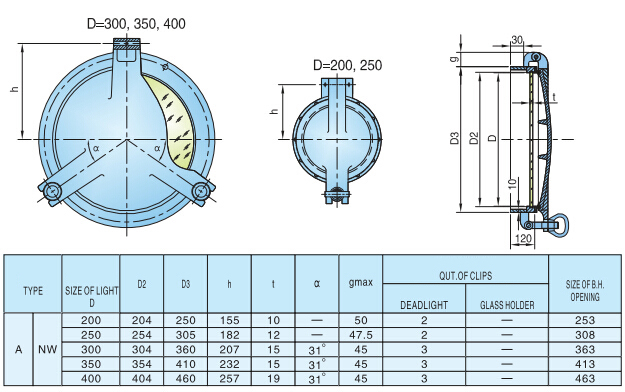

Drawing of Type A-NW
