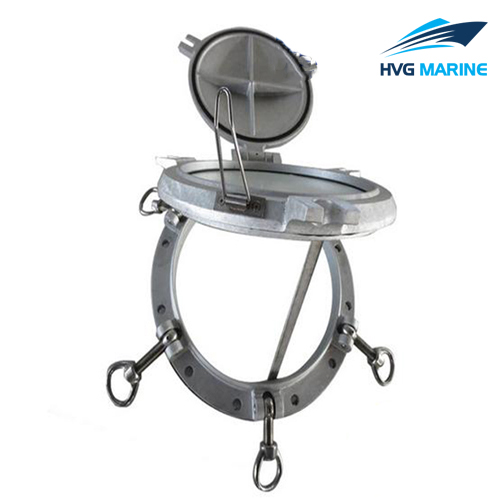

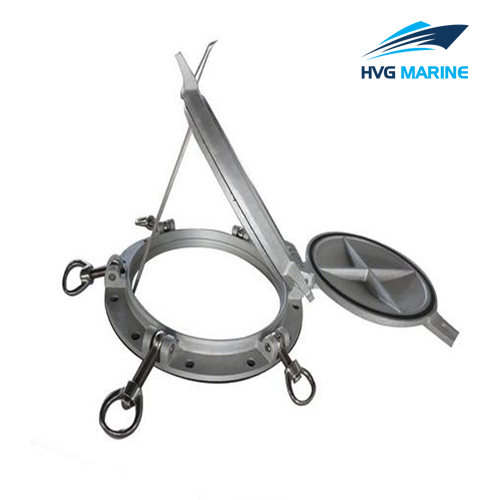

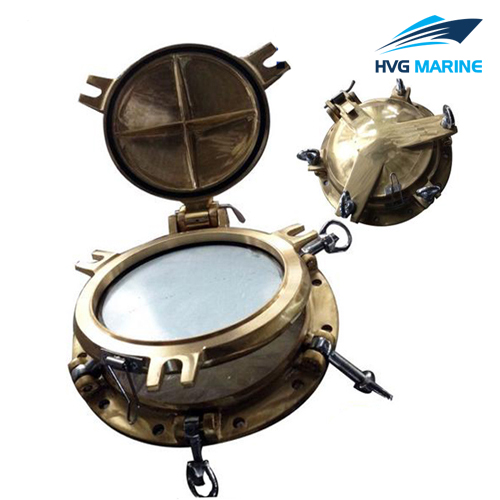

HVG MARINE OUTFITTING EQUIPMENT 0381: Boat Porthole with Deadlight
Made with copper, steel and aluminum, this side scuttle with deadlight is used in the sides above bulkhead deck or free board deck of passenger ships, or the ends of superstructure; and it is also applied in both sides and ends of the first tier of superstructure on the freeboard deck of non-passenger ship. This side scuttle with deadlight completely meets all the requirements of CCS, DNV, BV, LR, KR, and NK certificates.
Combination of materials:
|
Type |
Install type |
Material |
Material Code |
||
|
Main frame |
Glass holder and fastener |
Deadlight |
|||
|
B |
Bolted type |
Copper(1) |
Copper(1) |
Steel(2) |
112 |
|
Steel(2) |
Steel(2) |
Steel(2) |
222 |
||
|
Aluminum(3) |
Aluminum(3) |
Aluminum(3) |
333 |
||
|
Welding type |
Steel(2) |
Copper(1) |
Steel(2) |
212 |
|
|
Steel(2) |
Steel(2) |
Steel(2) |
222 |
||
|
Steel(2) |
Aluminum(3) |
Aluminum(3) |
233 |
||

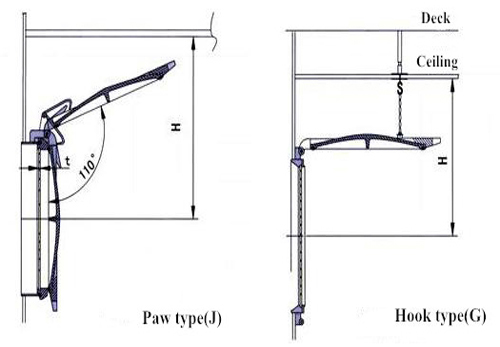

Opening and fastening model of deadlight:
| Clear light size (D:mm) |
200 |
250 |
300 |
350 |
400 |
450 |
|
| Min. distance from side scuttle center to ceiling (H:mm) | Paw type (J) |
350 |
400 |
450 |
500 |
540 |
580 |
| Hook type(G) |
Customized |
||||||
Drawing and specifications:

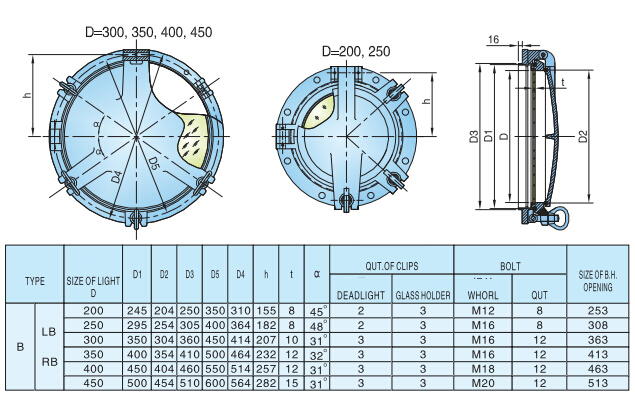

Drawing of Type B-LB RB

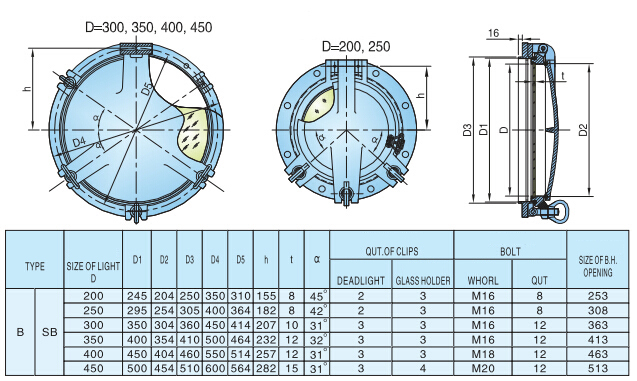

Drawing of Type B-SB

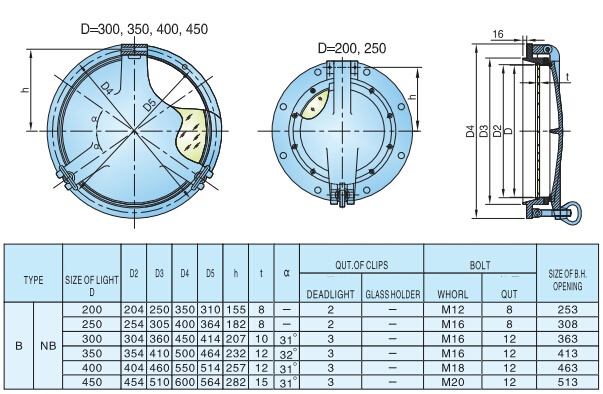

Drawing of Type B-NB

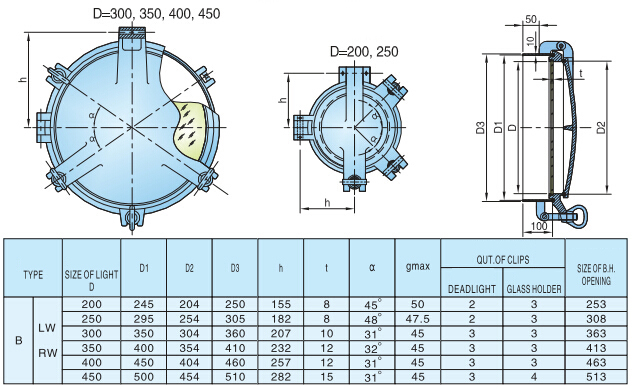

Drawing of Type B-LW RW

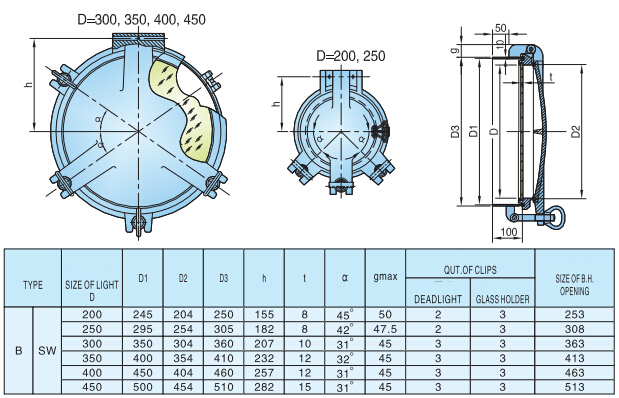

Drawing of Type B-SW

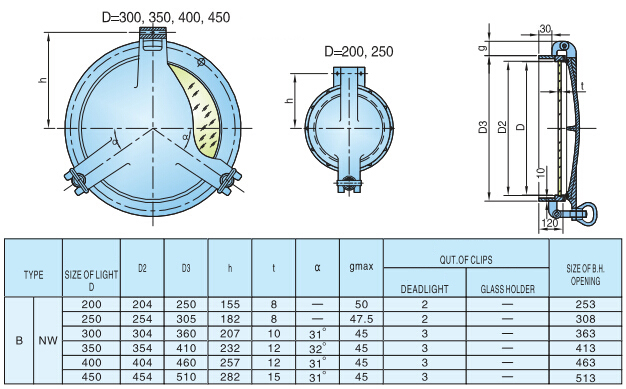

Drawing of Type B-NW
