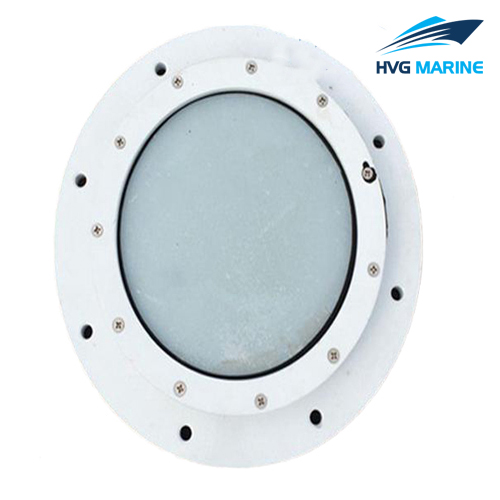

HVG MARINE OUTFITTING EQUIPMENT 0380: Side Scuttle without Deadlight
This product is a kind of side scuttle without deadlight; it can be made with copper, steel and aluminum. This side scuttle is used in the sides above bulkhead deck or free board deck of passenger ships, or the ends of superstructure; and it is also applied in both sides and ends of the first tier of superstructure on the freeboard deck of non-passenger ship. This side scuttle is certified by CCS, DNV, BV, LR, KR, and NK etc.
Combination of materials: “(0)” stands for without deadlight
|
Type |
Install type |
Material |
Material Code |
||
|
Main frame |
Glass holder and fastener |
Deadlight |
|||
|
C |
Bolted type |
Steel(2) |
Steel(2) |
—-(0) |
220 |
|
Aluminum(3) |
Aluminum(3) |
—-(0) |
330 |
||
|
Copper(1) |
Copper(1) |
—-(0) |
110 |
||
|
Welding type |
Steel(2) |
Copper(1) |
—-(0) |
210 |
|
|
Steel(2) |
Steel(2) |
—-(0) |
220 |
||
|
Steel(2) |
Aluminum(3) |
—-(0) |
230 |
||

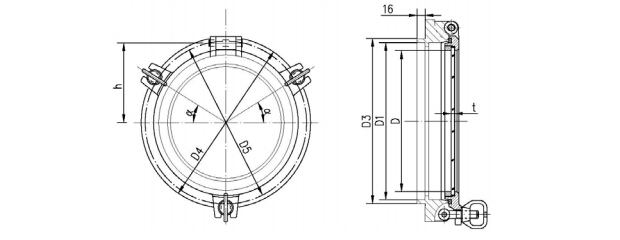

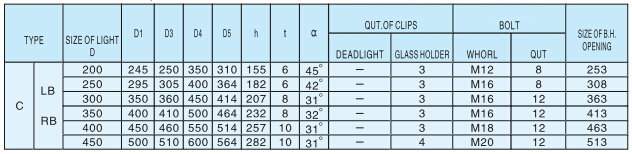

Drawing type C-LB/RB

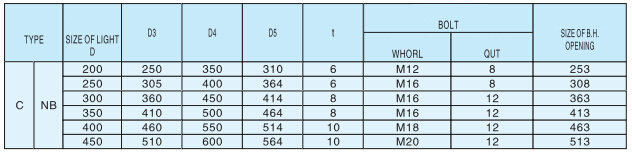

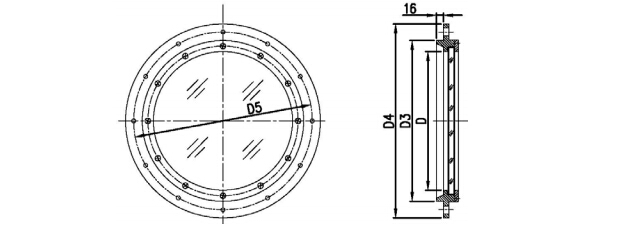

Drawing type C-NB

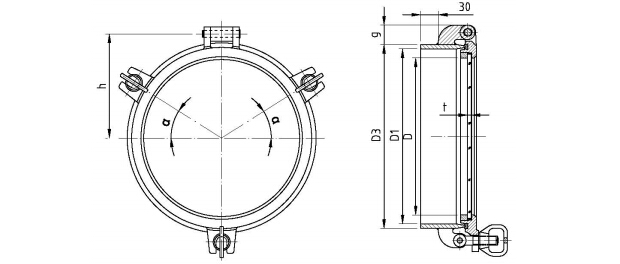

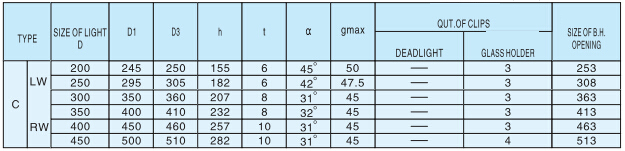

Drawing type C-LW/RW

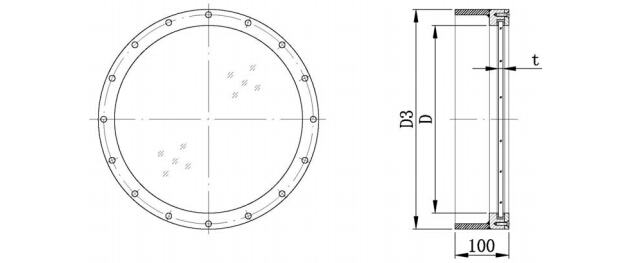

Drawing type C-NW
