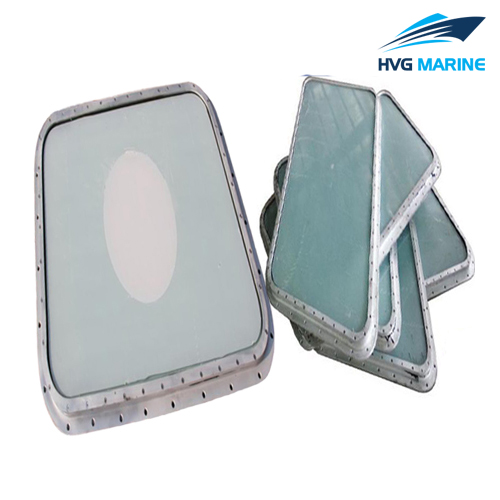

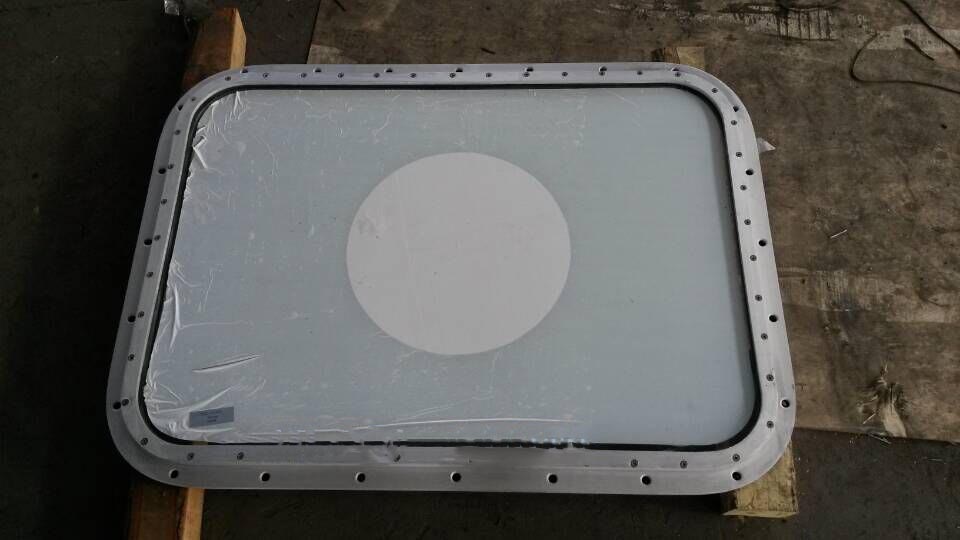

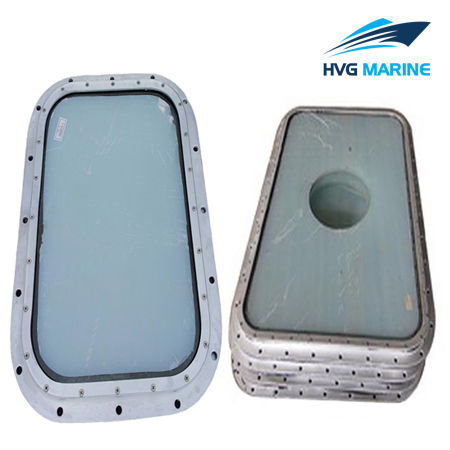

HVG MARINE OUTFITTING EQUIPMENT 0378: Fixed Rectangular Window for Wheel House

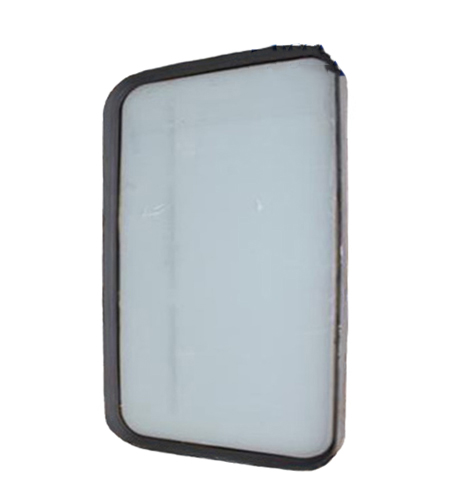

Made with aluminum alloy and steel, this product has two types: aluminum alloy bolted fixed rectangular window and steel welded fixed rectangular window. This fixed rectangular house is applicable for various kinds of ships and marine structure, fixed in wheel house, meeting room, bridge and enclosed area for operation. The electric heating glass of it for wheelhouse meet the regulations of ISO 3434 . Besides, we have obtained some relevant certificates like CCS, DNV, BV, LR, KR, and NK.

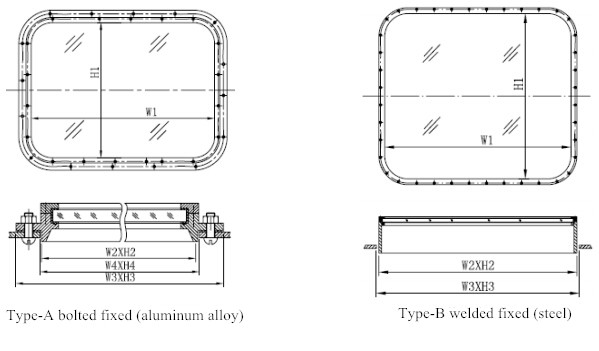

Drawing:

Technical specification:

Technical specification

Type	Frame type	Name	Frame material
A	BH	heating glass, bolted	aluminum alloy
A	BN	tempered glass, bolted	aluminum alloy
B	WH	heating glass, welded	carbon steel
B	WN	tempered glass, welded	carbon steel

Type	Nominal size	Size of frame		Size of opening		Glass thick		Weight
A	W1×H1	W2×H2	W3×H3	W4×H4	r	BH	BN	BH	BN
	800×630	848×678	930×760	852×682	144	12	15	25.5	25.9
	800×710	848×758	930×840	852×762		12	15	28.1	28.7
	900×630	948×678	1030×760	952×682		12	17	28.2	30.0
	900×710	948×758	1030×840	952×762		12	17	30.9	32.9
	900×800	948×848	1030×930	952×852		12	17	33.9	36.1
	1200×630	1248×678	1330×760	1252×682		15	20	41.6	44.0
	1200×710	1248×758	1330×840	1252×762		15	20	45.9	48.6
	1200×800	1248×848	1330×930	1252×852		15	20	50.6	53.6
	1500×710	1548×758	1630×840	1552×762		15	20	56.1	59.4
	1500×800	1548×848	1630×930	1552×852		15	20	61.2	64.9
	1800×710	1848×758	1930×840	1852×762		15	20	66.3	70.3
	1800×800	1848×848	1930×930	1852×852		15	20	72.4	76.8
	1800×900	1848×948	1930×1030	1852×952		15	20	77.5	82.5

Type	Nominal size	Size of frame		Size of opening		Glass thick		Weight
B	W1×H1	W2×H2	W3×H3	W4×H4	r	BH	BN	BH	BN
	800×630	848×678	930×760	852×682	144	12	15	41.3	41.8
	800×710	848×758	930×840	852×762		12	15	44.2	44.8
	900×630	948×678	1030×760	952×682		12	17	45.1	46.9
	900×710	948×758	1030×840	952×762		12	17	48.5	50.5
	900×800	948×848	1030×930	952×852		12	17	52.4	54.6
	1200×630	1248×678	1330×760	1252×682		15	20	60.9	63.3
	1200×710	1248×758	1330×840	1252×762		15	20	66.6	69.2
	1200×800	1248×848	1330×930	1252×852		15	20	72.2	75.2
	1500×710	1548×758	1630×840	1552×762		15	20	79.8	83.1
	1500×800	1548×848	1630×930	1552×852		15	20	86.4	90.1
	1800×710	1848×758	1930×840	1852×762		15	20	93.1	97.1
	1800×800	1848×848	1930×930	1852×852		15	20	100.4	104.8
	1800×900	1848×948	1930×1030	1852×952		15	20	108.6	113.6
