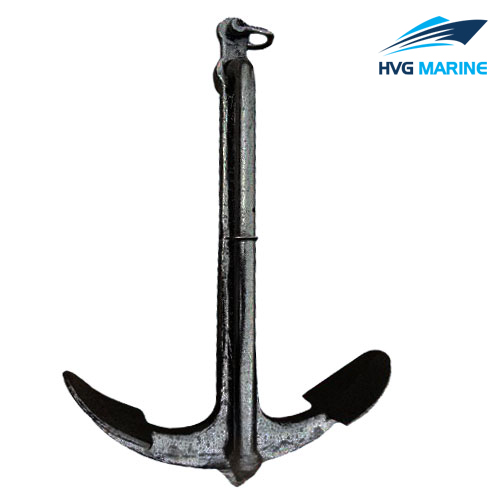

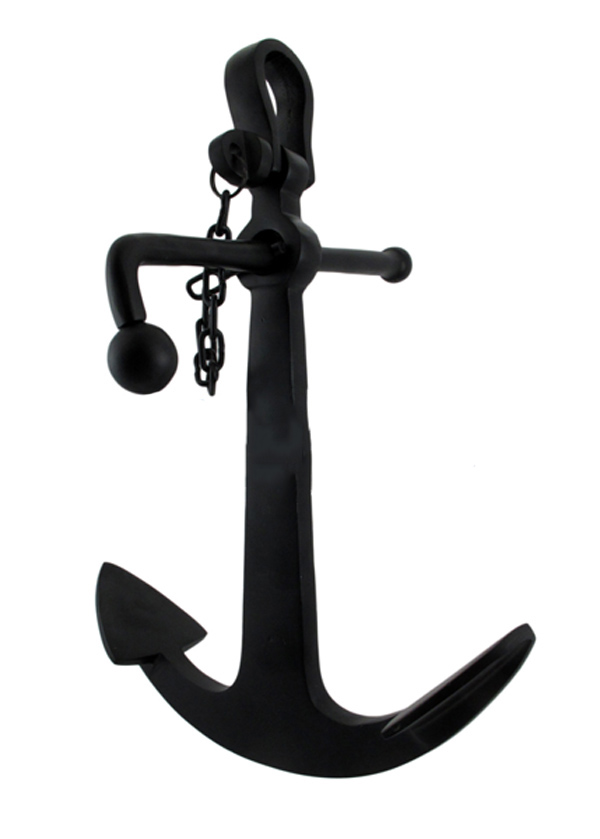

HVG MARINE MOORING EQUIPMENT 0356: Admiralty Anchor

We supply all varieties of marine anchors, including stockless anchor, stock anchor, High Holding Power Anchor and offshore anchor. The certificate of ABS, LR, BV, LR, DNV, GL, KR, IRS, CCS is avialable for our products. With the advantage of rich source, good quality and excellent service, we could be your reliable partner in China.

Product Detail
1.Material: ZG200-400C
2.Weight: 50KGS-10000KGS
3.Certificate: ABS, LR, GL, BV, NK, DNV, IRS, CCS.

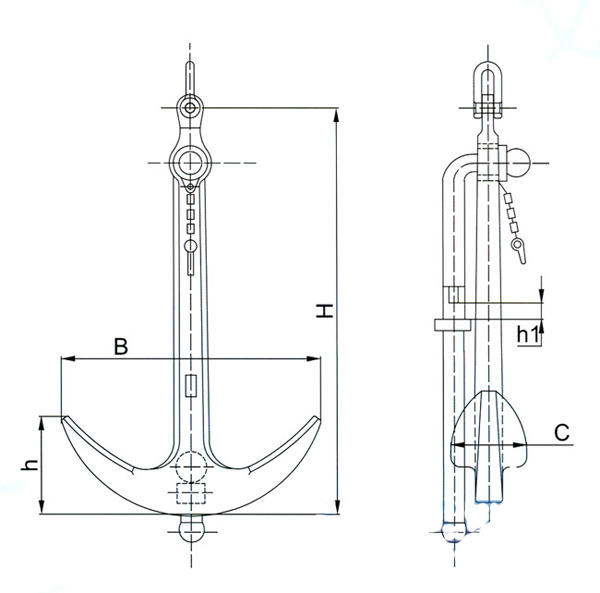

Drawing:

Technical specification:

Specifications

Nominal Weight (kg)	Dimensions (mm)
Nominal Weight (kg)	H	h	h1	B	C
50	960	230	42	635	185
75	1,105	266	45	710	210
100	1,215	293	49	780	230
125	1,310	316	52	840	245
150	1,395	336	55	900	265
200	1,535	370	61	990	290
250	1,650	398	65	1,065	310
300	1,755	423	70	1,105	330
400	1,930	465	77	1,240	365
500	2,080	502	84	1,335	390
600	2,210	533	89	1,440	415
700	2,330	560	93	1,500	440
800	2,435	587	97	1,570	460
900	2,530	610	101	1,630	475
1,000	2,620	633	104	1,685	495
1,250	2,825	680	112	1,810	535
1,500	3,000	725	118	1,955	565
2,000	3,300	797	131	2,140	625
2,500	3,550	857	138	2,270	672
3,000	3,780	912	150	2,415	715
3,500	3,980	960	158	2,540	750
4,000	4,160	1,000	165	2,650	785
5,000	4,480	1,100	184	2,830	800
6,000	4,740	1,113	190	3,000	938
7,000	4,760	1,180	200	3,165	960
8,000	5,025	1,280	210	3,300	980
9,000	5,450	1,330	220	3,440	990
10,000	5,680	1,340	230	3,600	1,085
