HVG MARINE MOORING EQUIPMENT 0353

HVG MARINE MOORING EQUIPMENT 0353: Anchor

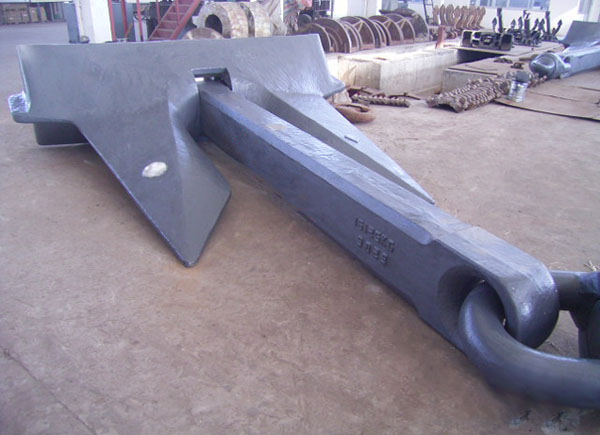

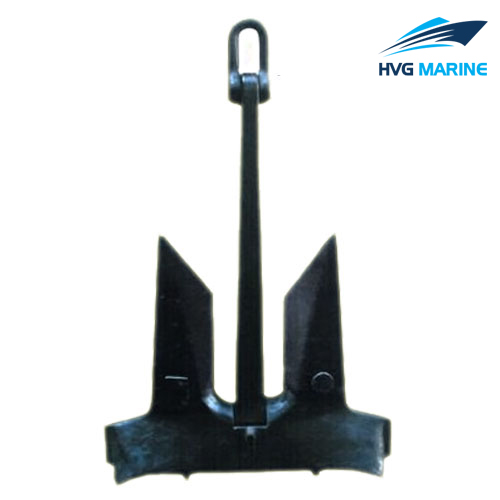

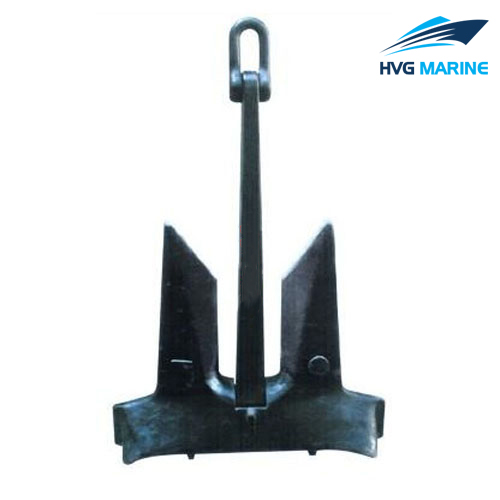

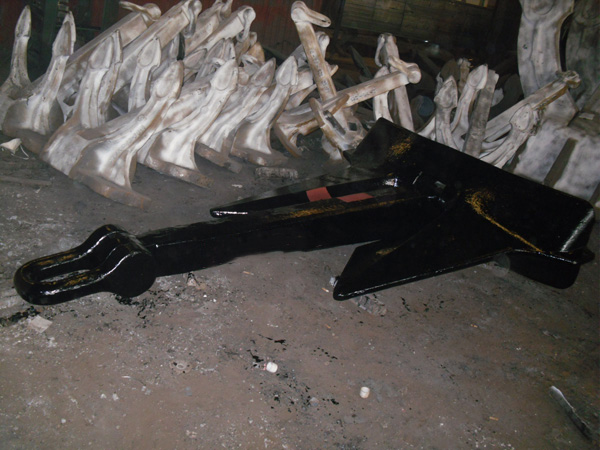

HVG MARINE MOORING EQUIPMENT 0353 anchor is stockless high holding power anchor that has wide anchor crown, thick and long flukes and longitudinal ribs. HVG MARINE MOORING EQUIPMENT 0353 heavy weight and high holding power makes it good stability. It is commonly used as main anchor on large container ships, car carriers and supertankers.

Details:

1. Type: Stockless HHP Anchor
2. Material: High Tensile Casting Steel
3. Nominal Weight: 56kg to 20000kg
4. Application: all kinds of seabed such as mud, soil, sandstone etc.
5. Features: fast deployment, excellent stability, high holding power up to 14
6. Certificate: CCS,ABS,LR,GL,DNV,NK,BV,KR,RINA,RS etc.

Note: our company is a professional marine anchor supplier. We can provide all types and specifications of anchors for you. If you’re interested in our anchors, please feel free to contact us. We’re sincere to establish long-term cooperation relationship with you.

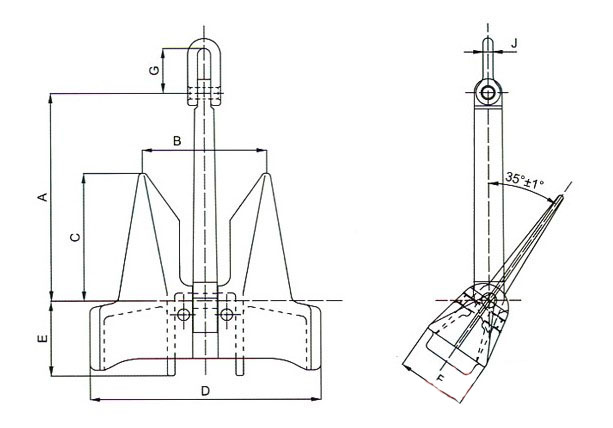

Drawing:

Technical specification:

Specifications:

Specifications:

Nominal Weight (kg)	Dimensions (mm)
Nominal Weight (kg)	A	B	C	D	E	F
56	612	555	170	376	113	298
100	745	675	200	458	135	364
135	745	675	205	458	135	364
180	909	822	252	558	166	442
225	1,010	915	277	623	185	495
250	1,010	915	280	623	185	495
270	1,040	940	288	638	190	508
300	1,075	975	298	660	200	525
315	1,075	975	300	660	200	525
340	1,120	1,015	310	690	205	548
360	1,120	1,015	313	690	205	548
428	1,213	1,098	336	745	222	590
495	1,255	1,135	348	770	230	610
590	1,350	1,220	375	829	246	658
675	1,412	1,278	390	868	257	690
765	1,470	1,335	408	906	269	718
910	1,560	1,410	430	957	284	760
970	1,592	1,445	440	978	292	775
1,080	1,650	1,495	455	1,014	302	805
1,200	1,710	1,545	470	1,050	315	835
1,305	1,760	1,595	485	1,082	323	858
1,361	1,782	1,615	495	1,096	326	870
1,440	1,818	1,645	505	1,118	332	885
1,575	1,875	1,695	518	1,152	343	915
1,710	1,925	1,745	532	1,184	352	940
1,845	1,975	1,785	546	1,215	362	965
1,980	2,020	1,830	560	1,242	370	985
2,100	2,065	1,865	570	1,268	377	1,005
2,295	2,130	1,920	588	1,310	385	1,035
2,475	2,175	1,970	602	1,340	395	1,062
2,655	2,225	2,018	615	1,368	408	1,085
2,794	2,265	2,055	625	1,393	415	1,105
3,040	2,320	2,100	640	1,424	426	1,130
3,550	2,455	2,225	680	1,508	450	1,198
3,670	2,480	2,248	688	1,525	455	1,210
3,940	2,540	2,300	705	1,562	465	1,240
4,500	2,655	2,405	735	1,632	485	1,295
4,840	2,720	2,465	755	1,670	500	1,330
5,175	2,785	2,520	770	1,710	510	1,358
5,610	2,858	2,590	790	1,758	523	1,396
6,000	2,922	2,646	810	1,796	535	1,426
6,450	2,995	2,712	830	1,840	548	1,462
6,900	3,062	2,775	848	1,884	560	1,496
7,350	3,126	2,832	866	1,923	572	1,526
7,800	3,190	2,890	884	1,962	584	1,558
8,300	3,256	2,950	902	2,002	596	1,590
8,700	3,308	2,996	916	2,034	605	1,614
9,300	3,382	3,064	936	2,080	619	1,652
9,675	3,425	3,104	948	2,108	627	1,674
9,900	3,452	3,128	956	2,124	632	1,686
10,500	3,523	3,192	976	2,166	645	1,720
11,100	3,589	3,252	994	2,207	657	1,752
11,700	3,650	3,308	1,010	2,245	668	1,782
12,300	3,712	3,364	1,028	2,283	680	1,812
12,900	3,772	3,418	1,044	2,320	690	1,842
13,500	3,830	3,470	1,060	2,355	700	1,870
14,100	3,885	3,520	1,076	2,389	710	1,896
14,700	3,940	3,570	1,090	2,423	721	1,924
15,400	4,002	3,626	1,108	2,461	732	1,954
16,100	4,062	3,680	1,125	2,498	744	1,982
16,900	4,128	3,740	1,144	2,538	755	2,016
17,800	4,200	3,806	1,162	2,583	769	2,050
18,800	4,277	3,875	1,185	2,630	783	2,088
20,000	4,366	3,956	1,210	2,685	800	2,132
25,000	5,046	4,577	1,375	3,135	846	2,438
