MOORING EQUIPMENT 0348
    • MOORING EQUIPMENT 0348
    HVG MARINE MOORING EQUIPMENT 0348

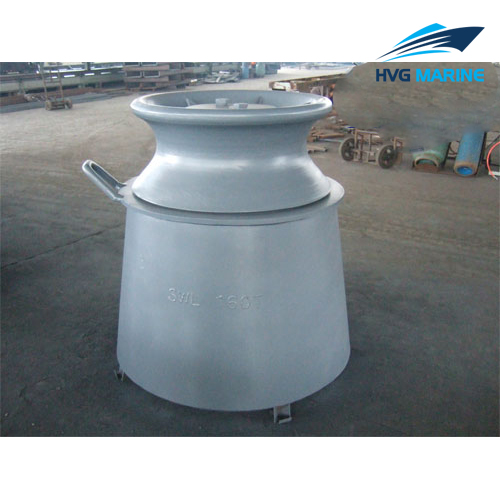

    HVG MARINE MOORING EQUIPMENT 0348:  Roller with Pedestal

    • 1. Cleat fairlead with single roller;
    • 2. Roller adopts
    • cleat fairlead adopts
    • 3. Two types: type A single roller with cylindrical pedestal, type B single roller with conical pedestal;
    • 4. Clear painting surface;
    • 5. Standard or customized production;
    • 6. Durable, long life;
    • 7. Abrasion resistance;
    • 8. Certificate of CCS,ABS etc.

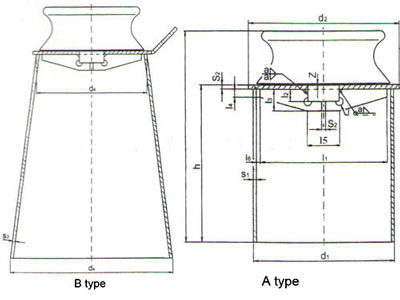

    Drawing:

    Technical specification:

    • Technical specification

    unit: mm



    Type d1×S1 d2 b d4
    1 219×12.5 255 60 –
    2 273×12.5 310 60 –
    3 355×12.5 395 60 –
    5 457×12.5 495 60 –
    8 559×12.5 595 80 560
    12 660×14.2 705 80 660
    20 660×17.5 705 100 660
    32 813×16 865 100 810
