MOORING EQUIPMENT 0343
    • MOORING EQUIPMENT 0343
    HVG MARINE MOORING EQUIPMENT 0343

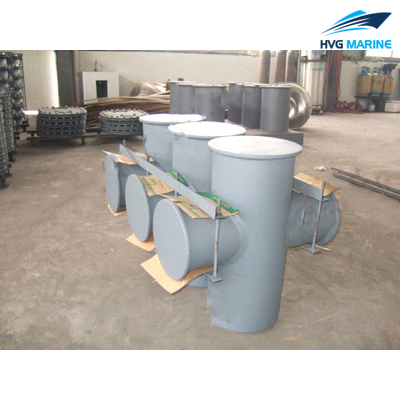

    HVG MARINE MOORING EQUIPMENT 0343:  Cross Bitt Bollard

    • 1. Ship cross bitt bollard;
    • 2. Standard: HVG MARINE MOORING EQUIPMENT 0343
    • 3. Material: casting steel;
    • 4. Nominal Diameters: 150mm,200mm,250mm,300mm,350mm;
    • 5. Weight: 33 to 186kg;
    • 6. Safe Working Load: 25T to 90T;
    • 7. Specific dimension,material, surface coating etc. are optional;
    • 8. One year quality warranty;
    • Customized bollards is available



    Technical specification:

    • Dimension(mm)
    Nominal Dia.(mm) Dimension(mm) Hemp. Rope Dia.(mm) Wire Rope Dia.(mm)
    H h B D D1 D2 D3 Weight(kg)
    150 480 280 460 165 114 206 158 33 45 16
    200 560 320 520 216 165 256 206 60 – 22
    250 640 360 610 267 216 308 256 102 – 28
    300 680 380 660 318 267 360 308 154 – 34
    350 720 420 720 355 267 400 312 186 – 38
