HVG MARINE MOORING EQUIPMENT 0341

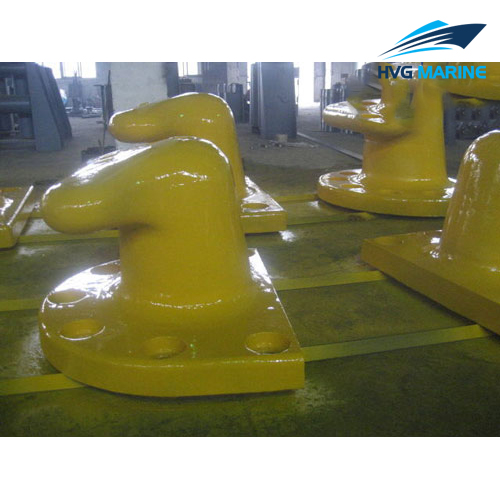

HVG MARINE MOORING EQUIPMENT 0341: Single Dock Bollard

HVG MARINE MOORING EQUIPMENT 0341 dock bollard can handle 10 to 200 tonnes bollard capacity. Its allowable line angle is up to 160 degree. Recommended line angle is 0 to 50 degree.HVG MARINE MOORING EQUIPMENT 0341 dock bollard is of high quality and has stable performance. It is widely used in various shipyards, docks etc. We can offer certificate CCS,ABS,BV or other certificates for our bollards. For more information, please feel free to contact us.

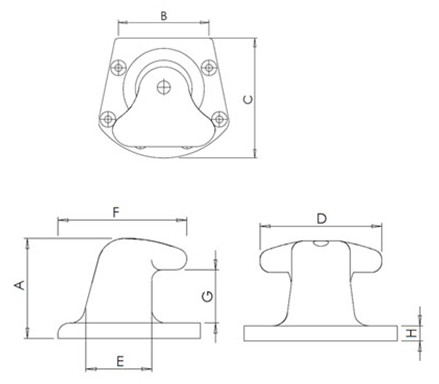

Drawing:

Technical specification:

Technical specification

Type	Bolts Qty	Capacity(Tonnes)	Dimensions
Type	Bolts Qty	Capacity(Tonnes)	A	B	C	D	E	F	G	H
RT5-10	4	10	200	216	236	160	106	218	120	32
RT10-25	4	25	245	350	305	250	150	285	127	45
RT15-30	5	30	290	430	410	360	190	360	150	45
RT30-50	5	50	365	550	540	430	250	475	200	50
RT50-75	5	75	430	650	650	520	300	570	235	70
RT50N-80	5	80	415	518	540	430	250	430	245	55
RT80-120	7	120	490	678	642	600	330	584	290	65
RT100-200	7	200	520	950	780	680	360	670	306	80
RTC100-120	7	200	600	950	780	680	360	670	386	80
RT150-200	6	200	656	1020	930	800	460	830	349	100
