    HVG MARINE MOORING EQUIPMENT 0351

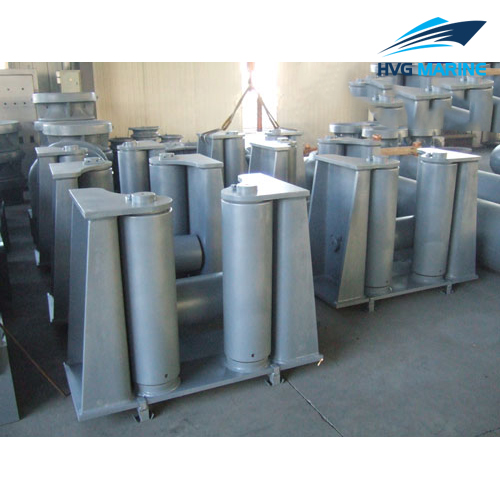

    HVG MARINE MOORING EQUIPMENT 0351: 3 Rollers Fairlead

    • 1. Fairlead with 3 horizontal rollers;
    • 2. Adopt standard CB*3062-79 type A;
    • 3. Steel wire diameter 19.5mm to 68mm,
    • Nylon rope diameter 36mm to 100mm;
    • 4. Clean,smooth surface without any defects;
    • 5. Lubricants filled between rollers and shafts;
    • 6. Pass the test of quality inspection center and get quality certificate;
    • 7. Painted on anticorrosive paint;
    • 8. Produce according to standard or customer’s drawing

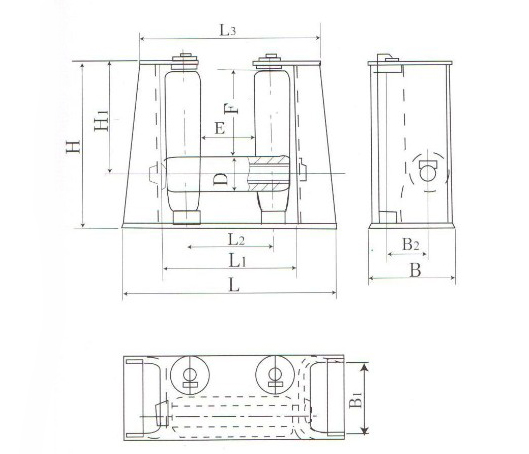

    Drawing:

    Technical specification:

    • Technical specification
    Wire Rope Diameter(mm) Nylon Rope Diameter(mm) E(mm) F(mm) D(mm) d(mm) L(mm) L1(mm) L2(mm) L3(mm) B(mm) B1(mm) B2(mm) H(mm) H1(mm) Weight(kg)
    19.5 36 200 257 100 40-0.5 644 416 300 544 238 194 108 508 330 138
    22.5 40 200 275 120 50-0.5 728 456 320 608 280 232 128 552 360 212
    26.0 45 200 311 130 55-0.5 776 480 330 646 304 250 138 606 405 273
    32.0 70 220 328 150 65-0.5 880 450 370 730 346 288 158 670 435 401
    34.5 80 240 358 160 70-0.5 940 580 400 780 370 308 168 710 470 469
    37.5 85 240 383 180 80-0.5 1030 620 420 850 417 345 190 770 510 678
    43.0 95 260 411 200 90-0.5 1136 686 460 936 459 385 210 820 550 866
    52.0 100 260 450 230 100-0.5 1256 746 490 1026 521 445 240 910 605 1197
    60.5 – 300 493 260 120-0.5 1430 850 560 1170 590 500 270 1000 670 1741
    68.5 – 320 563 320 150-0.5 1690 990 640 1370 714 620 330 1130 770 2811
